Flange Coup­lings TNF 5571

Key Characteristics of the Flange Couplings TNF 5571

Flange Couplings TNF 5571 are designed to establish a completely backlash-free connection between two shafts through frictional locking. These couplings provide a more powerful and cost-effective alternative to traditional press fits. It also known as "khớp nối bulong đai ốc TNF 5571".

The assembly process is straightforward: the flange halves are pushed onto the shaft ends and friction-locked using shrink discs. The flanges are then connected with a simple screw connection. There is no need for additional components such as keyways or wedges, nor is there a need to heat the inner section or cool the outer area.

- The coupling is available in 20 different sizes, offering flexibility for various applications.

- It supports both external and internal clamping, enhancing its versatility.

- The shaft diameter ranges from 70 mm to 540 mm (2.756 to 21.259 inches), making it suitable for different shaft sizes.

- The outer diameter spans from 240 mm to 1,200 mm (9.449 to 47.244 inches), and the total length varies between 150 mm and 750 mm (5.905 to 29.528 inches).

- It can handle torque from 6,900 Nm to 2,000,000 Nm (4,941.67 to 1,475,124.2 ft·lb), providing robust performance for heavy-duty applications.

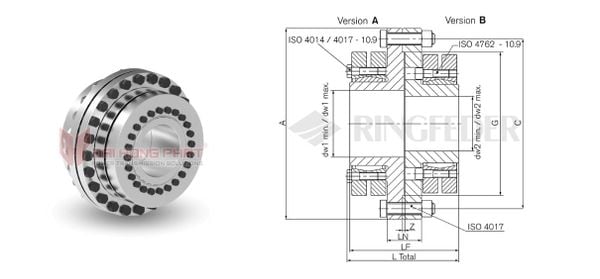

Product Specifications of Flange Couplings TNF 5571

TNF 5571 Catalogue	TNF 5571 Installation Instruction

Learn more at:

Why Choose Ringfeder Flange Couplings TNF 5571?

Ringfeder Flange Couplings are known for their torsional rigidity and high concentricity, allowing for large shaft tolerances. They not only handle the highest torques but also efficiently transmit bending loads, axial forces, and radial forces with exceptional precision and without wear.

Ringfeder TNF 5571 is widely used in many important industrial applications. In particular, it is applied in mining companies, where high torque transmission and reliability in harsh environments are required. In addition, plant manufacturers also trust TNF 5571 to ensure smooth and efficient production processes.

An authorized representative of Ringfeder Germany in Vietnam.

Dai Hong Phat Corp proudly serves as the authorized representative of Ringfeder Germany in Vietnam and several other countries in the region. With over 15 years of experience in providing transmission solutions, we are dedicated to delivering the best possible experience to our customers.

Our commitment to offering high-quality, genuine products ensures that our clients receive reliable and efficient solutions. Furthermore, we prioritize attentive and professional service to meet the needs and expectations of our valued customers. Trust Dai Hong Phat Corp for all your transmission requirements, knowing that you are in capable and experienced hands.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
