Elastomer Rings TSCHANS TNS

Key Characteristics of the Elastomer Rings TSCHANS TNS

TNS TSCHANS is an intermediate part used to connect shafts together, transmitting motion from the drive shaft to the shaft of the working machines. The coupling has the effect of opening and closing mechanisms, preventing overload, reducing dynamic loads, and compensating for eccentricity between shafts.

It allows angular, radial and axial shaft misalignment within defined limits. TNS TSCHAN S products transmit torque through spring washers.

TSCHANS TNS made in red standard and are connected together to form a coupling damping washer, used for Elastomer Jaw Couplings TNS. The elastic washers reduce shock, vibration and oil and are suitable for use in all rotation directions and mounting positions.

Elastomer Rings TNS with different Shore torques:

- Pb72 (black): Perbunan material, 72 Shore (A)

- Pb82 (black): Perbunan material, 82 Shore (A)

- VkB (blue): Polyurethane material, 83 Shore (A)

- VkR (red): Polyurethane material, 93 Shore (A)

- Vk60D (white): Polyurethane material, 60 Shore (D)

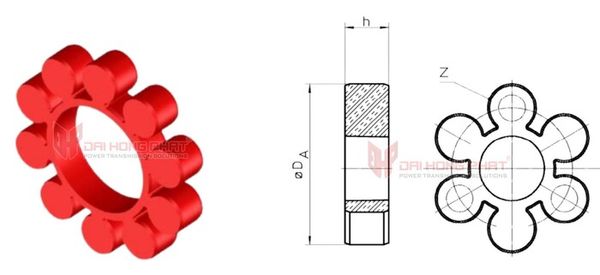

Product Specifications of Elastomer Rings TSCHANS TNS

TSCHANS TNS Catalogue	TSCHANS TNS Installation Instruction

Why Choose Ringfeder’s Elastomer Rings TSCHANS TNS?

TNS TSCHAN S is an intermediate part used to connect shafts together, transmitting motion from the drive shaft to the shaft of the working machine. The coupling has the function of opening and closing the mechanisms, preventing overload, reducing dynamic loads, and compensating for misalignment between shafts.

Torsion damping washers, allowing angular, radial and axial shaft misalignment within specified limits. TNS TSCHAN S products transmit torque through spring washers. These washers are made according to the red standard and are connected together to form a coupling damping washer. The elastic washer reduces shock, vibration and oil resistance and is suitable for use in all rotation directions and installation positions.

Authorized Distributor for Ringfeder Germany in Vietnam

Choosing the Elastomer Rings TSCHANS TNS means investing in a solution that seamlessly blends precision, durability, and cost-efficiency. Designed to meet the demands of industrial equipment and mechanical systems, this product guarantees exceptional performance and reliability.

In Vietnam, Dai Hong Phat Corp proudly serves as the authorized distributor for Ringfeder Germany's elastomer rings, ensuring access to genuine, high-quality products backed by professional support and expertise.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
