Elastomer Jaw Couplings TNS SX

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Elastomer Jaw Couplings TNS SX

The Ringfeder TNS SX Elastomer Jaw Couplings - a torsionally flexible, fail-safe claw coupling ideal for hydrodynamic couplings. It also known as "khớp nối trục TNS SX".

It balances out angular, radial, and axial shaft misalignments within defined limits, transferring torque via pressure-loadable elastic buffers of synthetic rubber (Pb) or polyurethane (VkR). The elastic intermediate ring cushions impacts, dampens torsional vibrations, and is oil-resistant and electrically conductive.

- The coupling is torsionally flexible and compensates for angular, radial, and axial shaft offsets.

- The intermediate rings are loaded in compression, with elastomers available in various shore hardness degrees.

- TNS SX is suitable for temperatures from –30°C to +100°C.

- The coupling has an outer diameter of up to 400 mm and a flange outer diameter of 690 mm.

- It can handle bores up to a maximum of 160 mm.

- The torque capacity with the VkR intermediate ring is up to TKn = 8,900 Nm and TKmax = 26,700 Nm.

- The coupling can operate at speeds up to nmax = 7,250 rpm.

Product Specifications of TNS SX Elastomer Jaw Coupling

TNS SX Catalogue	TNS SX Installation Instruction

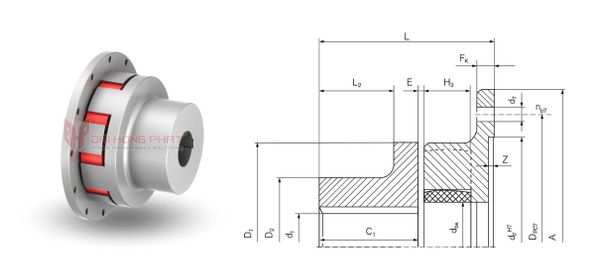

Identifier	Size Coupling	T_KN	n_max	Dimensions [mm]				Gw_ub
TNS SX	Size Coupling	Nm	[1/min]	d_{1 max}	A	D₁	L	[kg]
WS1010	TNS SX - 100	70	7250	48	145	105	84,5	2,9
WS1012	TNS SX - 125	128	6000	55	170	126	97	4,5
WS1014	TNS SX - 145	220	5200	65	194	145	109	6,4
WS1017	TNS SX - 170	340	4500	85	220	170	126,5	10,4
WS1020	TNS SX - 200	590	3750	95	250	200	156,5	17,5
WS1023	TNS SX - 230	900	3250	105	290	230	171	24,4
WS1026	TNS SX - 260	1400	3000	125	335	260	188	35,9
WS1030	TNS SX - 300	2090	2500	140	385	300	218,5	53,2
WS1036-0650	TNS SX - 360	3450	2150	150	455	360	271,5	84,4
WS1036-0750	TNS SX - 360	3450	480	150	514	360	273,5	84,4
WS1040	TNS SX - 400	4750	1900	160	514	400	265	94,6
WS1040-0866	TNS SX - 400	4750	1900	160	595	400	265	99,2
WS1040-L	TNS SX - 400	4750	1900	160	514	400	285	100,9
WS1040-L-0866	TNS SX - 400	4750	1900	160	595	400	285	105,5

Why Choose Ringfeder Elastomer Jaw Couplings TNS SX?

The rotationally resilient coupling of the Ringfeder TNS SX coupling is flexible in all directions and therefore compensates for angular, parallel and axial shaft misalignments of the connected machines. Misalignments can be caused, for example, by inaccurate assembly, heat movements or settling phenomena.

TNS SX couplings are used in drive units in many types of construction machinery as well as in steel, mining and cement plant technology, as well as connecting components in overhead cranes, containers and foundries.

Dai Hong Phat Corp specializes in supplying Ringfeder TNS SX Couplings products across Vietnam.

We ensure that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to providing high-quality Ringfeder TNS SX couplings at competitive prices. We maintain a substantial inventory to ensure goods are available in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
