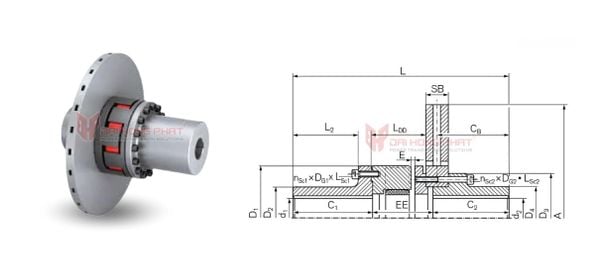

Elastomer Jaw Couplings TNS SDDL-5-BSV

Key Characteristics of the Elastomer Jaw Couplings TNS SDDL-5-BSV

Elastomer Jaw Coupling TNS SDDL-5-BSV allows angular, radial and axial misalignments within the limit definitions. The coupling transmits the torque through pressure-resistant washers made of synthetic rubber (Pb) or polyurethane (VkR) and connected together to form a seal. It also known as "khớp nối TNS SDDL-5-BSV".

This shaft coupling with washers reduces shock, vibration and is oil resistant. The washers are made of conductive Pb. The two-piece construction of the two coupling halves allows radial mounting and center removal. The coupling is suitable for use in all rotation directions and mounting positions. It also known as

- The TNS SDDL-5-BSV is suitable for temperatures ranging from –30 °C to +100 °C, allowing it to perform reliably in diverse environmental conditions.

- It features an inner diameter ranging from 55 to 160 mm, making it adaptable to various shaft sizes.

- The outer diameter spans from 126 to 400 mm, ensuring compatibility with different equipment configurations.

- The overall length varies between 286.5 and 588.5 mm, providing flexibility in installation for systems with different spatial constraints.

- Additionally, the torque capacity ranges from 370 to 13,350 Nm, ensuring reliable performance in high-torque applications.

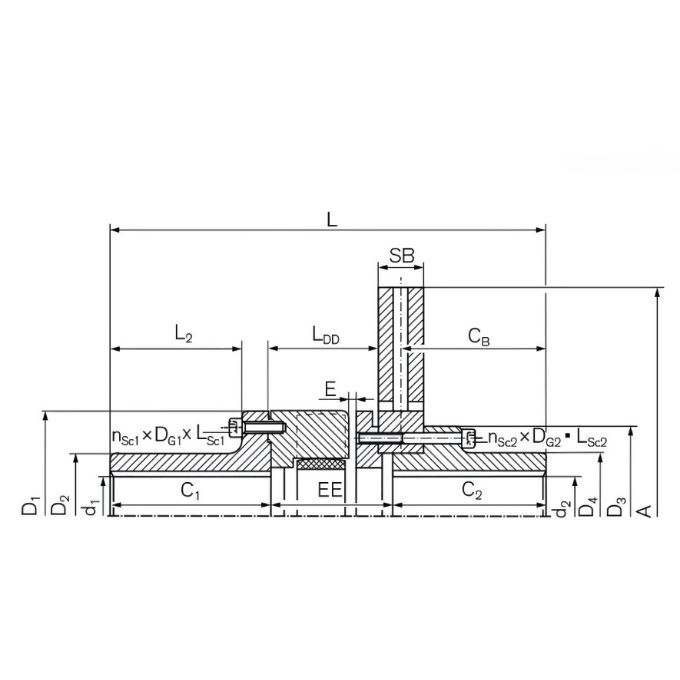

Product Specifications of TNS SDDL-5-BSV Elastomer Jaw Couplings

TNS SDDL-5-BSV Catalogue	TNS SDDL-5-BSV Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings TNS SDDL-5-BSV?
