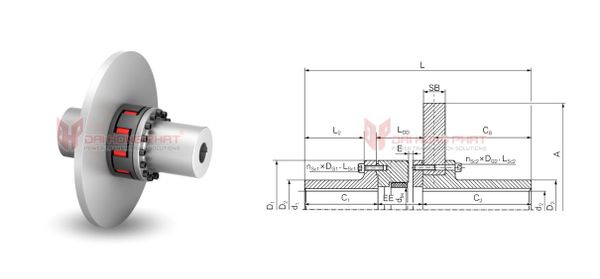

Key Characteristics of the Elastomer Jaw Couplings TNS SDDL-5-BS

The Ringfeder TNS SDDL-5-BS coupling is a torsionally flexible, fail-safe claw coupling with a removable intermediate part, comprising claw rings, a brake disk, and a buffer ring, also as knowns "khớp nối trục TNS SDDL-5-BS".

It balances angular, radial, and axial shaft misalignments, transferring torque via elastic buffers of synthetic rubber (Pb) or polyurethane (VkR). The oil-resistant elastic intermediate ring cushions impacts and torsional vibrations, while Perbunan rings are electrically conductive.

- Available in 23 sizes, providing a wide range of options for various applications.

- Torsionally flexible, compensates for angular, radial, and axial shaft offsets, ensuring smooth operation.

- Intermediate rings loaded in compression, enhancing durability and performance.

- Elastomers available in various shore hardness degrees, allowing customization to specific needs.

- Suitable for temperatures from –30°C to +100°C, making it versatile for different environmental conditions.

- Coupling outer diameter up to 400 mm, and brake disc outer diameter up to 1000 mm, accommodating different equipment sizes.

- Bores up to max. 160 mm, fitting various shaft sizes efficiently.

- Torques up to TKn = 13,350 Nm and TKmax = 40,000 Nm, capable of handling a wide range of loads, from light to heavy-duty applications.

- Speeds up to nmax = 7,250 rpm, suitable for both moderate and high-speed operations.

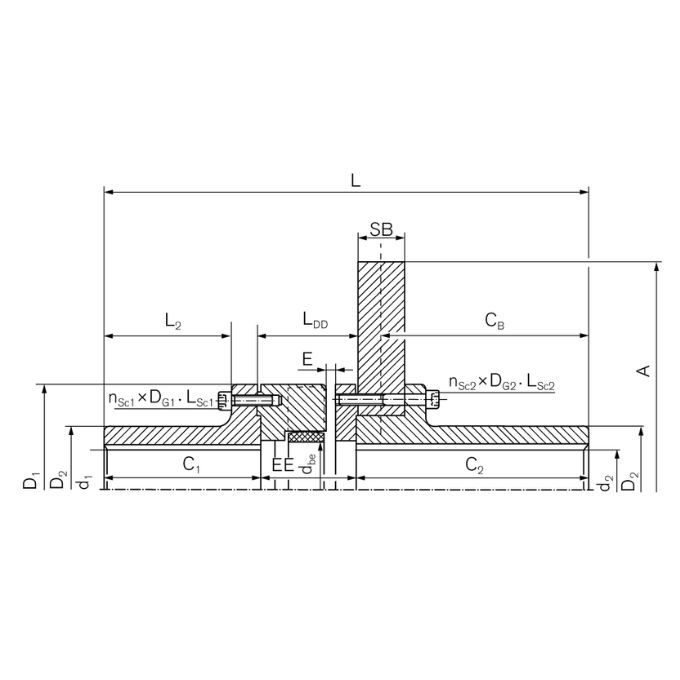

Product Specifications of TNS SDDL-5-BS Elastomer Jaw Couplings

TNS SDDL-5-BS Catalogue	TNS SDDL-5-BS Installation Instruction

Identifier	Size Coupling	T_KN	T_kmax	n_max	Dimension [mm]			Gw_ub
TNS SDDL-5-BS	Size Coupling	[Nm]	[Nm]	[1/min]	d₁;d_2kmax	D₁	L	[kg]
WS5114-0355-30	TNS SDDL-5-BS 145	600	1800	4800	65	145	344,5	43
WS5114-0400-30	TNS SDDL-5-BS 145	600	1800	4300	65	145	3445	49,3
WS5117-0400-30	TNS SDDL-5-BS 170	950	2850	4300	75	170	374,5	59,9
WS5117-0450-30	TNS SDDL-5-BS 170	950	2850	3750	75	170	374,5	67,7
WS5117-0500-30	TNS SDDL-5-BS 170	950	2850	3400	75	170	374,5	76,5
WS5120-0450-30	TNS SDDL-5-BS 200	1650	4950	3750	95	200	454	59,9
WS5120-0500-30	TNS SDDL-5-BS 200	1650	4950	3400	95	200	454	98,1
WS5120-0560-30	TNS SDDL-5-BS 200	1650	4950	3000	95	200	454	109,9
WS5123-0500-30	TNS SDDL-5-BS 230	2580	7740	3250	110	230	458,5	118,6
WS5123-0560-30	TNS SDDL-5-BS 230	2580	7740	3000	110	230	458,5	130,3
WS5123-0630-30	TNS SDDL-5-BS 230	2580	7740	2700	110	230	458,5	145,8
WS5123-0710-30	TNS SDDL-5-BS 230	2580	7740	2400	110	230	458,5	165,6
WS5126-0630-30	TNS SDDL-5-BS 260	3980	11940	2700	125	260	518,5	178,1
WS5126-0710-30	TNS SDDL-5-BS 260	3980	11940	2400	125	260	518,5	198
WS5130-0710-30	TNS SDDL-5-BS 300	5850	17550	2400	140	300	535,5	233,7
WS5130-0800-30	TNS SDDL-5-BS 300	5850	17550	2150	140	300	535,5	258,8
WS5130-0800-40	TNS SDDL-5-BS 300	5850	17550	2150	140	300	535,5	295,7
WS5136-0800-30	TNS SDDL-5-BS 360	9700	29100	2150	160	360	627,5	337,7
WS5136-0800-40	TNS SDDL-5-BS 360	9700	29100	2150	160	360	627,5	374
WS5136-1000-40	TNS SDDL-5-BS 360	9700	29100	1700	160	360	627,5	462,7
WS5140-0800-30	TNS SDDL-5-BS 400	13350	40050	1900	160	400	627,5	355,5
WS5140-0800-40	TNS SDDL-5-BS 400	13350	40050	1900	160	400	627,5	391,8
WS5140-1000-40	TNS SDDL-5-BS 400	13350	40050	1700	160	400	627,5	480,5

Why Choose Ringfeder Elastomer Jaw Couplings TNS SDDL-5-BS?

The Ringfeder TNS SDDL-5-BS Elastomer Jaw Couplings feature a multi-part design with flange hubs, detachable claw rings, and a full brake disc. This design allows for the replacement of the intermediate ring and brake disc by removing the claw rings, eliminating the need to move the shaft.

TNS SDDL-5-BS coupling are employed in drive units across various construction machinery. They are integral to steel, mining, and cement plant technology. Additionally, they connect components in overhead cranes, containers, and foundries.
