Elastomer Jaw Couplings TNS SDD-5

SKU:WS0710

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Elastomer Jaw Couplings TNS SDD-5

The Ringfeder Elastomer Jaw Couplings TNS SDD-5 are a torsionally flexible, fail-safe multi-part claw coupling with standard hubs and a removable intermediate part. It balances angular, radial, and axial shaft misalignments, transferring torque via elastic buffers of synthetic rubber (Pb) or polyurethane (VkR). It also knowns as "khớp nối trục TNS SDD-5".

- Torsionally flexible, this coupling compensates for angular, radial, and axial shaft offsets, ensuring smooth operation.

- The intermediate rings are loaded in compression, enhancing durability and performance.

- Elastomers are available in various shore hardness degrees, allowing customization to specific needs.

- Suitable for temperatures from -30°C to +100°C, it is versatile for different environmental conditions.

- With an outer diameter of up to 400 mm and bores up to a maximum of 160 mm, it can fit various shaft sizes efficiently.

- The coupling can handle torques up to TKn = 13,350 Nm and TKmax = 40,000 Nm, capable of managing a wide range of loads, from light to heavy-duty applications.

- It operates at speeds up to nmax = 7,250 rpm, suitable for both moderate and high-speed operations.

Product Specifications of TNS SDD-5 Elastomer Jaw Couplings

TNS SDD-5 Catalogue	TNS SDD-5 Installation Instruction

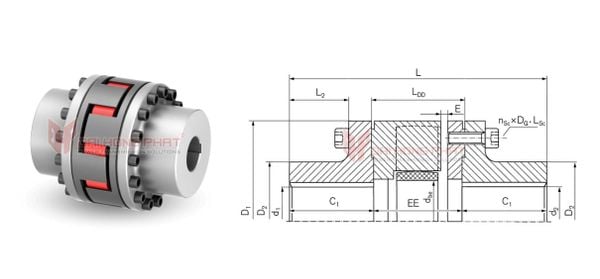

Identifier	Size Coupling	n_max	T_KN	Dimensions [mm]				Gw_ub
TNS SDD-5	Size Coupling	1/min	[Nm]	d₁;d_2kmax	D₁	D₂	L	[kg]
WS0710	SDD-5 100	7250	130	45	105	65	150	5,3
WS0712	SDD-5 100	6000	250	55	126	80	170	8,8
WS0714	SDD-5 145	5250	400	65	145	92	189	13,3
WS0717	SDD-5 170	4500	630	75	170	110	217	19,9
WS0720	SDD-5 200	3750	1100	95	200	135	274	35,3
WS0723	SDD-5 230	3250	1700	110	230	160	301	52,5
WS0726	SDD-5 260	3000	2650	125	260	180	321	71,5
WS0730	SDD-5 300	2500	3900	140	300	200	376	109
WS0736	SDD-5 360	2150	6500	160	160	225	469	179,8
WS0740	SDD-5 400	1900	8900	160	400	225	469	197,7

Why Choose Ringfeder Elastomer Jaw Couplings TNS SDD-5?

The oil-resistant elastic intermediate ring cushions of TNS SDD-5 impacts and torsional vibrations, while Perbunan rings are electrically conductive. The two-part construction allows easy radial mounting and dismounting without moving connected machines. Suitable for use in any rotational direction and installation position.

This versatile quality Ringfeder TNS SDD-5 coupling is optimally used, for example, as drive components in many types of construction machinery as well as in steel, mining and cement plant technology, as well as connecting components in overhead cranes, containers and foundries.

Dai Hong Phat Corp specializes in supplying Ringfeder TNS SDD-5 Couplings across Vietnam.

We ensure that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to providing high-quality Ringfeder TNS SDD-5 couplings at competitive prices. We maintain a substantial inventory to ensure goods are available in large quantities.

---------------------------------------------------------------------------------------
