Elastomer Jaw Couplings TNS S-St
SKU:WS0105Key Characteristics of the Elastomer Jaw Couplings TNS S-St
The Ringfeder TNS S-St coupling is a torsionally flexible, fail-safe claw coupling that compensates for angular, radial, and axial shaft misalignments. TNS S-St is also known as "khớp nối trục TNS S-St".
- The coupling is available in 13 sizes, providing a range of options for different applications.
- It supports a maximum bore diameter for both d1 and d2, ranging from 25 to 160 mm, accommodating various shaft sizes.
- The outer diameter of the coupling ranges from 50 to 400 mm, ensuring compatibility with different equipment dimensions.
- Its overall length ranges from 75 to 400 mm, allowing flexibility in installation setups.
- The coupling can operate at maximum rotational speeds ranging from 1,900 to 15,000 RPM, making it suitable for both moderate and high-speed applications
- It can handle torques up to TKN 15 to 8,900 Nm, catering to a wide spectrum of load requirements.
Product Specifications of TNS S-St Elastomer Jaw Couplings
| TNS S-St Catalogue | TNS S-St Installation Instruction |
 | |

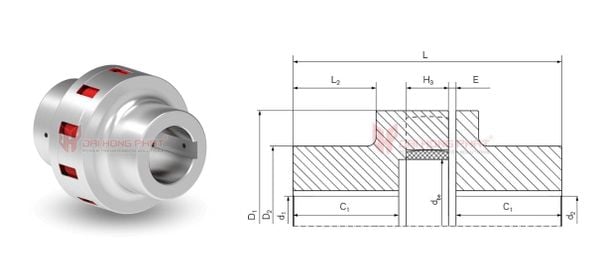

| Identifier | Size Coupling | nmax | TKN | TKmax | Dimensions [mm] | Gwub | ||
| TNS S-St | 1/min | [Nm] | [Nm] | d1;d2kmax | D1 | L | [kg] | |
| WS0105 | TNS S-St 50 | 15000 | 15 | 40 | 25 | 50 | 75 | 0,8 |
| WS0107 | TNS S-St 70 | 11000 | 55 | 160 | 38 | 70 | 100 | 1,8 |
| WS0108 | TNS S-St 85 | 9000 | 75 | 225 | 40 | 85 | 110 | 2,7 |
| WS0110 | TNS S-St 100 | 7250 | 130 | 390 | 48 | 105 | 125 | 4,9 |
| WS0112 | TNS S-St 125 | 6000 | 250 | 750 | 55 | 126 | 145 | 7,5 |
| WS0114 | TNS S-St 145 | 5250 | 400 | 1200 | 65 | 145 | 160 | 10,6 |
| WS0117 | TNS S-St 170 | 4500 | 630 | 1900 | 85 | 170 | 190 | 18 |
| WS0120 | TNS S-St 200 | 3750 | 1100 | 3300 | 95 | 200 | 245 | 31 |
| WS0123 | TNS S-St 230 | 3250 | 1700 | 5150 | 105 | 230 | 270 | 43,5 |
| WS0126 | TNS S-St 260 | 3000 | 2650 | 7950 | 125 | 260 | 285 | 63 |
| WS0130 | TNS S-St 300 | 2500 | 3900 | 11700 | 140 | 300 | 330 | 91,5 |
| WS0136 | TNS S-St 360 | 2150 | 6500 | 19500 | 150 | 360 | 417 | 146,2 |
| WS0140 | TNS S-St 400 | 1900 | 8900 | 26700 | 160 | 400 | 400 | 160,4 |
Why Choose Ringfeder Elastomer Jaw Couplings TNS S-St?
Couplings have versatile applications such as transport elements in many types of construction machinery as well as in technological, mining and cement machinery, connecting elements in overhead cranes, containers and metallurgy of all kinds.
The Ringfeder TNS S-ST coupling allows the compensation of angular, radial and axial misalignments within a defined range and transmits torque by means of pressure-resistant cushion drives made of Perbunan or Polyurethane of different hardness. Connected to form an oil-proof, anti-vibration and shock-absorbing layer in the center.
Dai Hong Phat Corp specializes in the supply of genuine Ringfeder TNS S-LSt Couplings throughout Vietnam.
Our products are brand new, complete with certificates and clear origins.
With 15 years of industry experience, Dai Hong Phat Corp is committed to providing high-quality Ringfeder TNS S-LSt coupling at competitive prices. We maintain a substantial inventory to ensure the availability of goods in large quantities.
---------------------------------------------------------------------------------------
