Elastomer Jaw Couplings TNS S-BT

Key Characteristics of the Elastomer Jaw Couplings TNS S-BT

The Ringfeder TNS S-BT Elastomer Jaw Coupling is a torsionally flexible, fail-safe claw coupling with a brake drum. It also has Vietnamese name "khớp nối trục TNS S-BT".

It balances angular, radial, and axial shaft misalignments, transferring torque via pressure-loadable, elastic buffers of synthetic rubber (Pb) or polyurethane (VkR). The oil-resistant elastic intermediate ring cushions impacts and torsional vibrations.

The coupling can be used in any rotational direction, with the brake drum assigned to the load side.

- Torsionally flexible, this coupling compensates for angular, radial, and axial shaft offsets, ensuring smooth and efficient operation.

- The intermediate rings are loaded in compression, enhancing the coupling's durability and performance.

- Elastomers are available in various shore hardness degrees, allowing for customization to meet specific needs.

- Suitable for temperatures ranging from –30°C to +100°C, it is versatile for different environmental conditions.

- The coupling features an outer diameter of up to 400 mm and a brake drum outer diameter of up to 710 mm, making it suitable for various equipment sizes.

- With bores up to a maximum of 160 mm, it can efficiently fit different shaft sizes.

- The coupling can handle torques up to TKn = 13,350 Nm and TKmax = 40,000 Nm, accommodating a wide range of loads from light to heavy-duty applications.

- It operates at speeds up to nmax = 4,200 rpm, ensuring efficient performance in both moderate and high-speed operations.

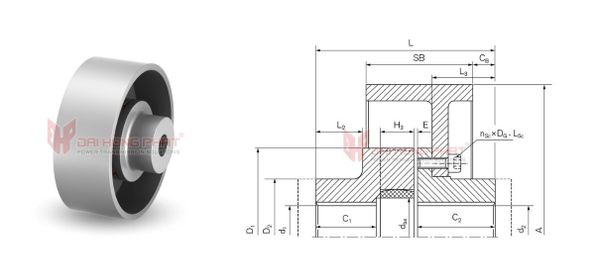

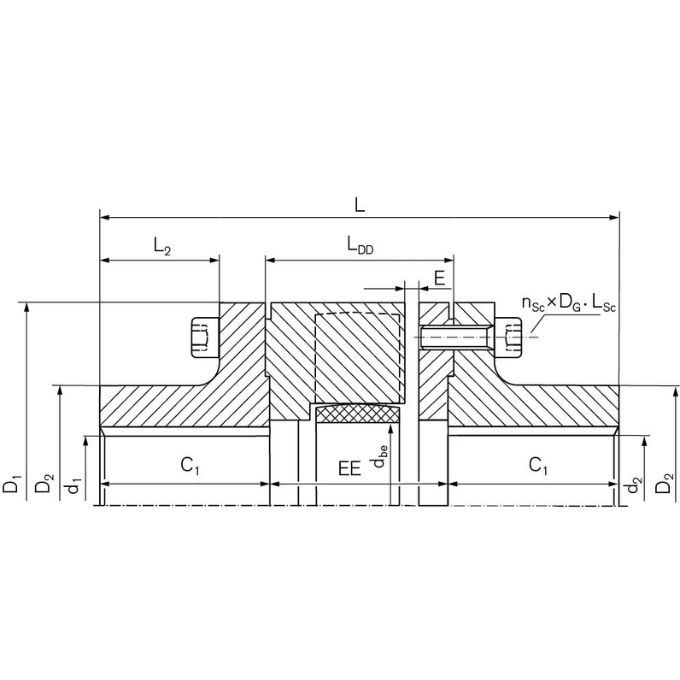

Product Specifications of TNS S-BT Elastomer Jaw Couplings

TNS S-BT Catalogue	TNS S-BT Installation Instruction

Identifier	Size Coupling	nmax	TKN	Dimensions [mm]				Gwub
TNS S-BT		[1/min]	[Nm]	d1 max	d2 max	D1	L	[kg]
WS0510-200	TNS S-BT 100	4200	130	48	42	105	125	9,4
WS0512-200	TNS S-BT 125	4200	250	55	55	126	145	12
WS0514-200	TNS S-BT 145	4200	400	65	65	145	160	15,2
WS0514-250	TNS S-BT 145	3400	400	65	65	145	160	19,8
WS0517-250	TNS S-BT 170	3400	630	85	85	170	190	26,7
WS0517-315	TNS S-BT 170	2700	630	85	85	170	190	36,1
WS0520-315	TNS S-BT 200	2700	1100	95	95	200	245	48
WS0520-400	TNS S-BT 200	2100	1100	95	95	200	245	64,6
WS0523-400	TNS S-BT 230	2100	1700	105	105	230	270	75,8
WS0523-500	TNS S-BT 230	1700	1700	105	105	230	270	103,1
WS0526-500	TNS S-BT 260	1700	2650	125	125	260	285	121,6
WS0530-630	TNS S-BT 300	1360	3900	140	140	300	330	199,4
WS0530-710	TNS S-BT 300	1200	3900	140	140	300	330	255,9
WS0536-630	TNS S-BT 360	1360	6500	150	150	360	417	261
WS0536-710	TNS S-BT 360	1200	6500	150	150	360	417	304,5
WS0540-710	TNS S-BT 400	1200	8900	160	160	400	400	317,6

Why Choose Ringfeder Elastomer Jaw Coup­lings TNS S-BT?

TNS S-BT coupling avoid torsional vibrations by transferring them to safer speed ranges. The elastic intermediate rings provide high damping capability, limiting resonance and protecting machinery. They also mitigate torque shocks, quickly calming vibrating systems and preventing structure-borne noise.

The versatile and high-quality Ringfeder TNS S-BT coupling is ideal for use as drive components in various types of construction machinery. It is also highly effective in steel, mining, and cement plant technology, as well as in connecting components for overhead cranes, containers, and foundries.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder TNS S-BT Couplings throughout Vietnam.

Our products are brand new, complete with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing high-quality Ringfeder TNS S-BT coupling at competitive prices. We maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
