Elastomer Jaw Couplings TNM LE

SKU:WN0806-106

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Elastomer Jaw Couplings TNM LE

The Ringfeder TNM LE coupling features a one-part design with an externally centered flange. This torsionally elastic and puncture-proof jaw coupling with a screw-down flange compensates for angular, radial, and axial shaft offsets within set tolerances.

Torque is transmitted via pre-compressed elastic buffers made of synthetic rubber (Perbunan; Pb), which are connected to form an intermediate ring. This elastic intermediate ring dampens impacts and torsional vibrations and is electrically conductive, preventing unwanted static charging. The coupling can be used in any rotational direction and installation position.

- Torsionally Flexible: Compensate for angular, radial, and axial shaft misalignments.

- Design: Pre-compressed individual buffers connected to an intermediate ring.

- Intermediate Rings: Available in different Shore hardness levels (standard Pb72, hard Pb82) and usable in temperatures from –30 °C to +100 °C.

- Maintenance: Elastic intermediate ring can be replaced with movement of the connected aggregates.

- Specifications:

Bores: Up to 230 mm
Torques: Up to TKn = 41,000 Nm / TKmax = 97,500 Nm
Speeds: Up to nmax = 5,000 min-1

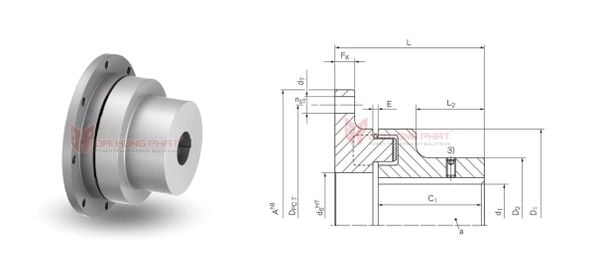

Product Specifications of TNM LE Elastomer Jaw Coupling

TNM LE Catalogue	TNM LE Installation Instruction

Identifier	Size Coupling	T_{KN [Nm]}		n_max	Dimensions [mm]				Gw_ub
TNM LE	Size Coupling	Pb72	Pb82	1/min	d_1kMax	D1	D2	L	[kg]
WN0806-106	TNM LE - 67	22	35	5000	28	67	46	47,5	1
WN0808-120	TNM LE - 82	48	75	5000	32	82	53	59	2,6
WN0809-144	TNM LE - 97	96	150	5000	45	97	69	73	2,9
WN0811-158	TNM LE - 112	150	230	5000	48	112	79	85,5	4,2
WN0812-180	TNM LE - 128	250	380	5000	55	128	90	98,5	6,6
WN0814-200	TNM LE - 148	390	600	4500	65	148	107	111,5	9,4
WN0816-220	TNM LE - 168	630	980	4000	75	168	124	127,5	13,9
WN0819-248	TNM LE - 194	1050	1650	3500	85	194	140	141,5	20,3
WN0821-274	TNM LE - 214	1500	2400	3000	95	214	157	156	27,9
WN0824-314	TNM LE - 240	2400	3700	2750	110	240	179	169	38,5
WN0826-344	TNM LE - 265	3700	5800	2500	120	265	198	195,5	53,1
WN0829-380	TNM LE - 295	4900	7550	2250	130	295	214	210	68,6
WN0833-430	TNM LE - 330	6400	9900	2000	150	330	248	224	94,6
WN0837-480	TNM LE - 370	8900	14000	1750	170	370	278	250	103,1
WN0841-575	TNM LE - 415	13200	20500	1500	190	415	315	273	185,1
WN0848-615	TNM LE - 480	18000	28000	1400	210	480	315	293	226,8
WN0857-692	TNM LE - 575	27000	41000	1200	230	575	350	313	308,2

Why Choose Ringfeder Elastomer Jaw Couplings TNM LE?

The TNM LE couplings offer torsional flexibility and excellent damping of torsional vibrations, providing reliable performance in various applications. Their modular design allows for multiple variations, and individual elastomers are joined into one intermediate ring, enabling easy replacement. With a maximum torque range from 27 to 97,500 Nm, these couplings ensure high versatility and efficiency

Ringfeder TNM LE jaw couplings are versatile components in general engineering. They are primarily used as drive and output couplings for gears, pumps, screw compressor drives, and combined heat and power plants.

Dai Hong Phat Corp is a leading specialist in supplying all Ringfeder Flexible Coupling TNM LE products throughout Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to providing authentic, high-quality Ringfeder TNM LE couplings at competitive prices. Additionally, we maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------
