Elastomer Jaw Couplings TNM H

0₫

Size:

TNM H - 67

TNM H - 82

TNM H - 97

TNM H - 112

TNM H - 128

TNM H - 148

TNM H - 168

TNM H - 194

TNM H - 214

TNM H - 240

TNM H - 265

TNM H - 295

TNM H - 330

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Product information

Key Characteristics of the Elastomer Jaw Couplings TNM H

The Ringfeder TNM H Elastomer Jaw Couplings - a torsionally elastic and puncture-proof claw coupling with a removable intermediate piece, primarily used for pump drives, also as known "khớp nối trục TNM H".

It compensates for angular, radial, and axial shaft misalignments within defined limits and transmits torque through pressure loadable, elastic buffers of synthetic rubber (Pb), formed as an intermediate ring.

The elastic intermediate ring dampens impacts and torsional vibrations, is oil-resistant and electrically conductive, and both coupling halves are divided into two parts for easy radial installation and de-installation of the reduction sleeve.

- The bore diameter range of 30-150 mm for both d1 and d2 ensures compatibility with a variety of shafts, making it suitable for diverse applications.

- The outer diameter range of 67-330 mm supports various hub sizes.

- The overall length range of 160-570 mm accommodates different spatial requirements.

- The coupling can handle rotational speeds up to 10,000 rpm, making it ideal for high-speed applications.

- Additionally, the torque capacity of 22-6,400 Nm for TKN Pb72 and 35-9,900 Nm for TKN Pb82 allows it to manage a wide range of torque loads, ensuring reliable performance in demanding conditions.

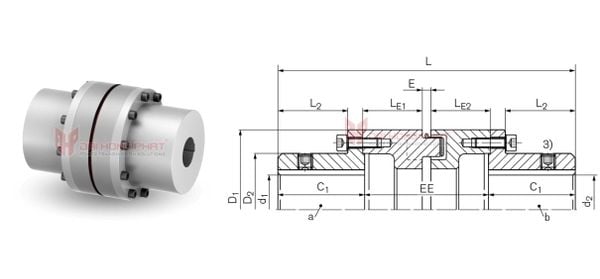

Product Specifications of TNM H Elastomer Jaw Coupling

TNM H Catalogue	TNM H Installation Instruction

Identifier	Size Coupling	T_{KN [Nm]}		Dimensions [mm]					Gw_ub
TNM H	Size Coupling	Pb72	Pb82	d_1kMax	d_2kMax	D₁	D₂	L	[kg]
WN0706-100	TNM H - 67	22	35	30	30	67	45	160	10000
WN0706-120	TNM H - 67	22	35	30	30	67	45	180	10000
WN0706-140	TNM H - 67	22	35	30	30	67	45	200	10000
WN0708-100	TNM H - 82	48	75	35	35	82	53	180	8000
WN0708-120	TNM H - 82	48	75	35	35	82	53	200	8000
WN0708-140	TNM H - 82	48	75	35	35	82	53	220	8000
WN0709-100	TNM H - 97	96	150	45	45	97	66	200	7000
WN0709-120	TNM H - 97	96	150	45	45	97	66	220	7000
WN0709-140	TNM H - 97	96	150	45	45	97	66	240	7000
WN0711-100	TNM H - 112	150	230	50	50	112	79	220	6000
WN0711-120	TNM H - 112	150	230	50	50	112	79	240	6000
WN0711-140	TNM H - 112	150	230	50	50	112	79	260	6000
WN0712-100	TNM H - 128	250	380	60	60	128	90	240	5000
WN0712-120	TNM H - 128	250	380	60	60	128	90	260	5000
WN0712-140	TNM H - 128	250	380	60	60	128	90	280	5000
WN0712-180	TNM H - 128	250	380	60	60	128	90	320	5000
WN0714-100	TNM H - 148	390	600	65	65	148	107	260	4500
WN0714-140	TNM H - 148	390	600	65	65	148	107	300	4500
WN0714-180	TNM H - 148	390	600	65	65	148	107	340	4500
WN0716-100	TNM H - 168	630	980	75	75	168	124	280	4000
WN0716-140	TNM H - 168	630	980	75	75	168	124	320	4000
WN0716-180	TNM H - 168	630	980	75	75	168	124	360	4000
WN0719-100	TNM H - 194	1050	1650	85	85	194	140	300	3500
WN0719-140	TNM H - 194	1050	1650	85	85	194	140	340	3500
WN0719-180	TNM H - 194	1050	1650	85	85	194	140	380	3500
WN0719-250	TNM H - 194	1050	1650	85	85	194	140	450	3500
WN0721-100	TNM H - 214	1500	2400	95	95	214	157	320	3000
WN0721-140	TNM H - 214	1500	2400	95	95	214	157	360	3000
WN0721-180	TNM H - 214	1500	2400	95	95	214	157	400	3000
WN0721-250	TNM H - 214	1500	2400	95	95	214	157	470	3000
WN0724-100	TNM H - 240	2400	3700	110	110	240	179	340	2750
WN0724-140	TNM H - 240	2400	3700	110	110	240	179	380	2750
WN0724-180	TNM H - 240	2400	3700	110	110	240	179	420	2750
WN0724-250	TNM H - 240	2400	3700	110	110	240	179	490	2750
WN0726-100	TNM H - 265	3700	5800	120	120	265	198	380	2500
WN0726-140	TNM H - 265	3700	5800	120	120	265	198	420	2500
WN0726-180	TNM H - 265	3700	5800	120	120	265	198	460	2500
WN0726-250	TNM H - 265	3700	5800	120	120	265	198	530	2500
WN0729-140	TNM H - 295	4900	7550	130	130	295	214	440	2250
WN0729-180	TNM H - 295	4900	7550	130	130	295	214	480	2250
WN0729-250	TNM H - 295	4900	7550	130	130	295	214	550	2250
WN0733-140	TNM H - 330	6400	9900	150	150	330	248	460	2000
WN0733-180	TNM H - 330	6400	9900	150	150	330	248	500	2000
WN0733-250	TNM H - 330	6400	9900	150	150	330	248	570	2000

Why Choose Ringfeder Elastomer Jaw Couplings TNM H?

The rotational resilience of the TNM H coupling effectively transfers dangerous torsional vibrations from the operational range of plant machinery to safe rotational speed ranges.

The elastic intermediate rings have high material damping capabilities, limiting resonance enhancements when passing through dangerous speed ranges and protecting the coupled machines from damage.

Dai Hong Phat Corp specializes in supplying all Ringfeder Flexible Coupling TNM H products throughout Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to offering authentic, high-quality Ringfeder TNM H couplings at competitive prices. Additionally, we maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------
