Elastomer Jaw Couplings TNM GTW

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Elastomer Jaw Couplings TNM GTW

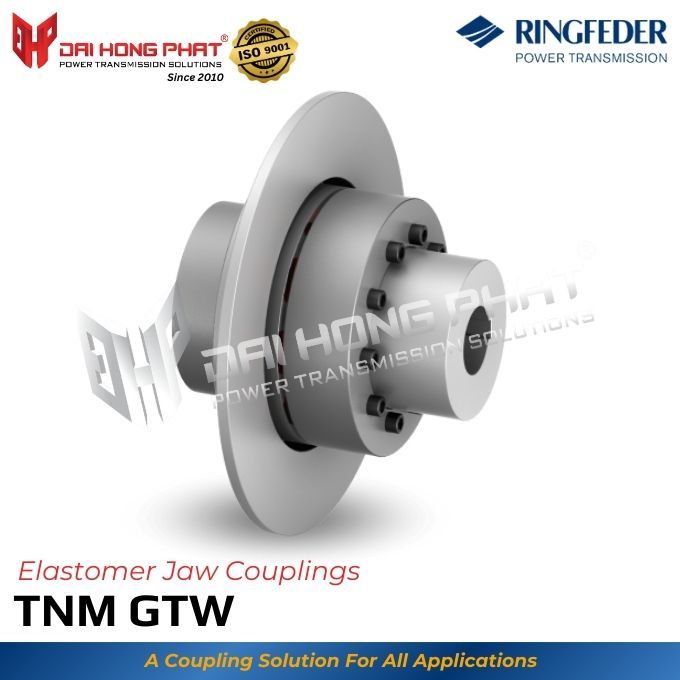

The Ringfeder Elastomer Jaw Couplings TNM GTW is a three-part torsionally flexible and shock-proof claw coupling with a brake disc made of nodular graphite iron and a removable claw ring. It compensates for angular, radial, and axial shaft misalignments, transmitting torque through an elastic transitional ring made of synthetic rubber (Pb), which dampens shocks, is oil-resistant, and normally electrically conductive.

The coupling can be used in any rotation direction and installed in any position, with the elastic ring allowing machine replacements without axial displacement. It also known as "khớp nối trục TNM GTW".

- Available in 24 Sizes: This wide range of sizes ensures the coupling can meet diverse application needs.

- Max. Bore Diameter:

+ d1 ranges from 42 to 185 mm

+ d2 ranges from 46 to 180 mm

- Outer Diameter: D1 ranges from 112 to 415 mm, the outer diameter range indicates the overall size of the coupling, ensuring compatibility with different machinery.

- Overall Length: L ranges from 133 to 441, ensures the coupling can fit within different spatial constraints, making it suitable for both compact and spacious setups.

- Rotational Speed: nmax ranges from 1,255 to 4,580 RPM

- Torque:

+ TKN Pb72 ranges from 150 to 13,200 Nm

+ TKN Pb82 ranges from 230 to 20,500 Nm

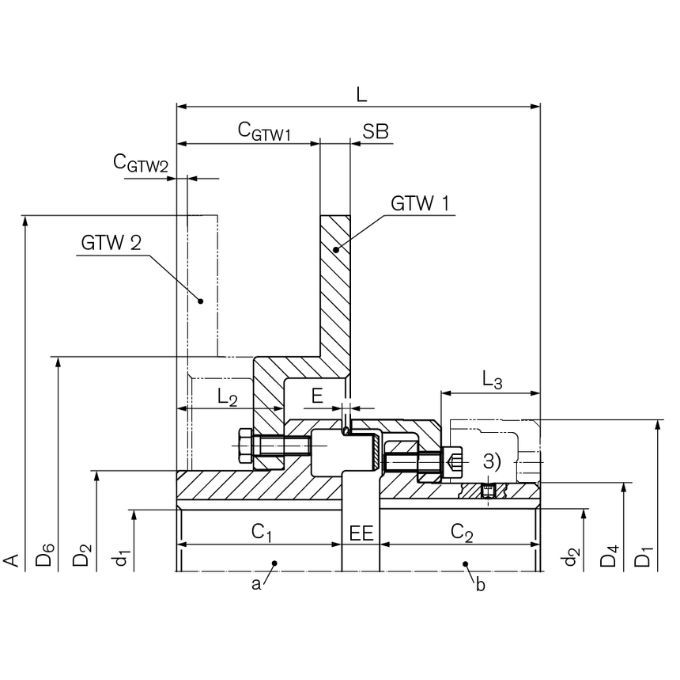

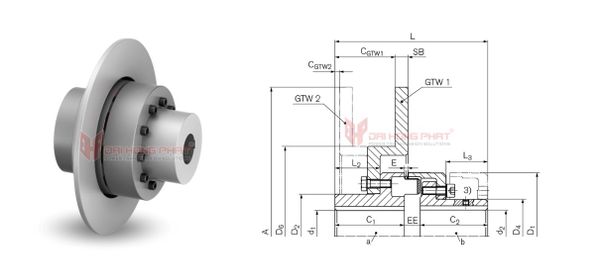

Product Specifications of TNM GTW Elastomer Jaw Coupling

TNM GTW Catalogue	TNM GTW Installation Instruction

Identifier	Size Coupling	T_{KN [Nm]}		n_max	Dimenssions [mm]				Gw_ub
TNM GTW	Size Coupling	Pb72	Pb82	1/min	d_1kmax	d_2kmax	D₁	L	[kg]
WN0411-250	TNM GTW - 112	150	230	4580	42	46	112	133	8,8
WN0411-300	TNM GTW - 112	150	230	3820	42	46	112	133	11,7
WN0412-300	TNM GTW - 128	250	380	3820	52	53	128	154	14,6
WN0414-300	TNM GTW - 148	390	600	3820	58	65	148	176	18,4
WN0416-356	TNM GTW - 168	630	980	3225	72	75	168	198	28
WN0416-406	TNM GTW - 168	630	980	2825	72	75	168	198	31
WN0419-406	TNM GTW - 194	1050	1650	2825	85	85	194	221	39,1
WN0419-457	TNM GTW - 194	1050	1650	2510	85	85	194	221	44
WN0421-406	TNM GTW - 214	1500	2400	2825	92	95	214	243	48,8
WN0421-514	TNM GTW - 214	1500	2400	2510	92	95	214	243	53,6
WN0424-457	TNM GTW - 240	2400	3700	2510	102	100	240	267	67
WN0426-514	TNM GTW - 240	2400	3700	2230	102	100	240	267	72
WN0426-457	TNM GTW - 265	3700	5800	2510	120	115	265	310	89,4
WN0426-514	TNM GTW - 265	3700	5800	2230	120	115	265	310	94,2
WN0429-514	TNM GTW - 295	4900	7550	2230	130	130	295	334	113,5
WN0429-610	TNM GTW - 295	4900	7550	1880	130	130	295	334	124,5
WN0433-514	TNM GTW - 330	6400	9900	2230	150	135	330	356	149,3
WN0433-610	TNM GTW - 330	6400	9900	1880	150	135	330	356	160,3
WN0437-610	TNM GTW - 370	8900	14000	1880	170	160	370	399	212,7
WN0437-711	TNM GTW - 370	8900	14000	1615	170	160	370	399	227,9
WN0441-610	TNM GTW - 415	13200	20500	1880	185	180	415	441	279,5
WN0441-711	TNM GTW - 415	13200	20500	1615	185	180	415	441	294,3
WN0441-812	TNM GTW - 415	13200	20500	1410	185	180	415	441	326,4
WN0441-915	TNM GTW - 415	13200	20500	1255	185	180	415	441	356,8

Why Choose Ringfeder Elastomer Jaw Couplings TNM GTW?

The TNM GTW coupling transfers dangerous torsional vibrations from machinery to safe rotational speed ranges, preventing negative effects.

The high material damping capability of the elastic intermediate rings protects the machines by limiting resonance enhancements, mitigating torque shocks, and preventing the conduction of structure-borne noise.

Dai Hong Phat Corp specializes in supplying all Ringfeder Flexible Coupling TNM GTW products across Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing authentic, high-quality Ringfeder TNM GTW couplings at competitive prices. We also maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------
