Elastomer Jaw Couplings TNM GHBS

Key Characteristics of the Elastomer Jaw Couplings TNM GHBS

Elastomer Jaw Couplings TNM GHBS feature a multi-part design with a straight brake disc made of steel, also as known Vietnamese name "khớp nối trục TNM GHBS".

The Ringfeder TNM GHBS is a torsionally flexible and shock-proof claw coupling with a removable brake disc and claw ring, compensating for angular, radial, and axial shaft misalignment within fixed tolerances.

Torque is transmitted by an elastic transitional ring made of synthetic rubber (Pb), which dampens shocks and torsional vibrations and is electrically conductive, preventing undesirable static charging.

- The Ringfeder TNM LE couplings perform well across a broad temperature range, from –30°C to +100°C, making them suitable for diverse environments.

- The elastic ring is designed for easy replacement without moving the coupled machines, enhancing maintenance efficiency.

- These couplings accommodate bore sizes up to 150 mm, offering versatility in application.

- They handle torques up to TKn = 7,550 Nm and TKmax = 18,000 Nm, providing robust performance for high-demand situations.

- With speeds up to 4,500 rpm, they are ideal for high-speed operations requiring precision and reliability.

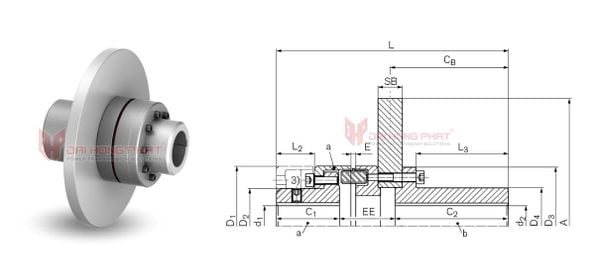

Product Specifications of TNM GHBS Elastomer Jaw Coupling

TNM GHBS Catalogue	TNM GHBS Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings TNM GHBS?

For easy separation of the coupled machines, one coupling half consists of a hub and a bolt-on claw ring

The rotation direction of the drive can be checked when the claw ring is unbolted and slid back, and a coupling half with the associated aggregate can be removed radially.
