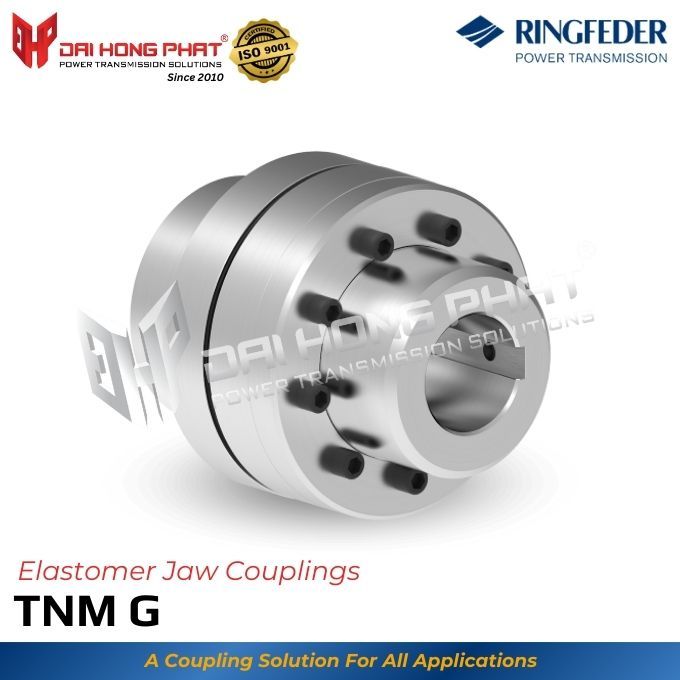

Key Characteristics of the Elastomer Jaw Couplings TNM G

The Elastomer Jaw Couplings TNM G feature a three-part design, allowing the elastic ring to be replaced without axially moving the machine. This design simplifies maintenance and ensures efficient operation. It also known as "khớp nối trục TNM G".

The elastic intermediate ring can be changed without axially shifting the machine. The coupling is usable in every sense of rotation and installation position.

- Torsionally Flexible: The coupling compensates for angular, radial, and axial shaft misalignments, ensuring efficient and smooth operation.

- Intermediate Rings: The rings are loaded in compression, enhancing the coupling's durability and performance.

- Elastomers: Available in various shore hardness degrees, allowing for customization based on specific application requirements.

- Temperature Range: Suitable for temperatures from –30°C to +100°C, making the coupling versatile for different environmental conditions.

- Maintenance: The elastic ring can be replaced without having to move the coupled machines, simplifying maintenance procedures (three-part models).

- Bore Capacity: Can handle bores up to a maximum of 280 mm, accommodating a variety of shaft sizes.

- Torque Capacity:

+ Maximum torque (TKn): 41,000 Nm

+ Peak torque (TKmax): 97,500 Nm

- Speed Capacity: Can operate at speeds up to nmax = 5,000 rpm, suitable for high-speed applications.

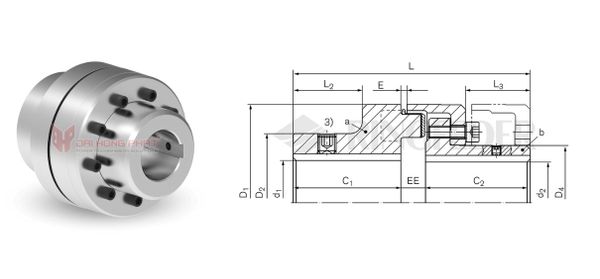

Product Specifications of TNM G Elastomer Jaw Coupling

TNM G Catalogue	TNM G Installation Instruction

Identifier	Size Coupling	Pb75 [Nm]		Pb82 [Nm]		n_max	Dimensions [mm]			Gw_ub
TNM G	Size Coupling	T_KN	TKmax	T_KN	TKmax	1/min	d_1Kmax	d_2kmax	L	[kg]
WN0208	TNM G - 82	48	100	75	150	8000	32	32	92	2
WN0209	TNM G - 97	96	200	150	210	7000	42	39	113	3.4
WN0211	TNM G - 112	150	310	230	540	6000	48	46	133	5.5
WN0212	TNM G - 128	250	500	380	650	5000	55	53	154	8.3
WN0214	TNM G - 148	390	800	600	1350	4500	65	65	176	13.1
WN0216	TNM G - 168	630	1300	980	1800	4000	75	75	198	19.4
WN0219	TNM G - 194	1050	2000	1650	2400	3500	85	85	221	28.6
WN0221	TNM G - 214	1500	3100	2400	4200	3000	95	95	243	38.8
WN0224	TNM G - 240	2400	4800	3700	6200	2750	110	100	267	52.4
WN0226	TNM G - 265	3700	7500	5800	8300	2500	120	115	310	75.3
WN0229	TNM G - 295	4900	10000	7550	10500	2250	130	130	334	97.3
WN0233	TNM G - 330	6400	13000	9900	14500	2000	150	135	356	130
WN0237	TNM G - 370	8900	18200	14000	20000	1750	170	160	399	183.6
WN0241	TNM G - 415	13200	27000	20500	27000	1500	190	180	441	258.2
WN0248	TNM G - 480	18000	36000	28000	66000	1400	210	200	485	346.5
WN0257	TNM G - 575	27000	54000	41000	97500	1200	230	260	525	528.8

Why Choose Ringfeder Elastomer Jaw Couplings TNM G?

The coupling Ringfeder TNM G is a torsionally elastic and puncture-proof claw coupling. It balances out angular, radial, and axial shaft misalignments within defined limits. The coupling transfers the torque via pressure loadable, elastic buffers of synthetic rubber (Pb) which are joined together as an intermediate ring.

Couplings provide balance for angular, radial and axial misalignment within defined limits. Couplings transmit torque through elastic, pressure-resistant cushions of synthetic rubber bonded together as an intermediate ring.

Dai Hong Phat Corp specializes in supplying all Ringfeder Elastomer Jaw Coupling TNM G products across Vietnam.

We guarantee that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing authentic, high-quality Ringfeder TNM G couplings at competitive prices. We also maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
