Elastomer Jaw Couplings TNM E

SKU:WN0105

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Elastomer Jaw Couplings TNM E

The Ringfeder Elastomer Jaw Couplings TNM E is a two-part, torsionally elastic, and puncture-proof claw coupling with a standard hub. It compensates for angular, radial, and axial shaft misalignments within defined limits.

Torque is transferred via pressure-loadable, elastic buffers made of synthetic rubber (Pb), which form an intermediate ring. This ring cushions impacts, dampens torsional vibrations, and is oil-resistant and electrically conductive. The coupling can be used in any rotational direction and installation position.

- Available in 18 Sizes: This variety ensures the coupling can meet a wide range of application needs.

- Max. Bore Diameter d1: 19-230 mm; d2: 19-230 mm, accommodates various shaft sizes, providing flexibility for different applications.

- Outer Diameter: D1: 50-575 mm, indicates the overall size of the coupling, ensuring compatibility with different machinery.

- Overall Length: L: 52-488 mm, ensures the coupling can fit within different spatial constraints, suitable for both compact and spacious setups.

- Rotational Speed: nmax: 1,200-12,500 RPM

- Torque:

+ TKN Pb72: 13-27,000 Nm

+ TKN Pb82: 20-41,000 Nm

Product Specifications of TNM E Elastomer Jaw Coupling

TNM E Catalogue	TNM E Installation Instruction

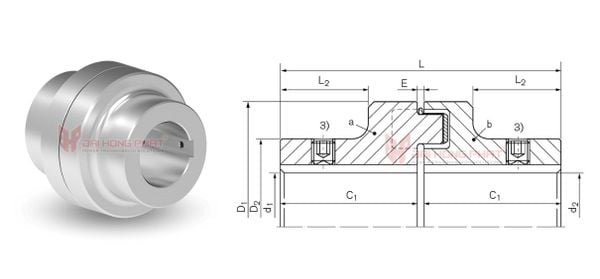

Identifier	Size Coupling	T_{KN [Nm]}		n_max	Dimensions [mm]					Gw_ub
TNM E	Size Coupling	Pb72	Pb82	1/min	d_1Kmax	d_2kmax	D1	D2	L	[kg]
WN0105	TNM E - 50	13	20	5000	19	19	50	33	52	0,4
WN0106	TNM E - 67	22	35	5000	28	28	67	46	62,5	1
WN0108	TNM E - 82	48	75	5000	32	32	82	53	83	1,8
WN0109	TNM E - 97	96	150	5000	42	42	97	69	103	3,4
WN0111	TNM E - 112	150	230	5000	48	48	112	79	123,5	5,3
WN0112	TNM E - 128	250	380	5000	55	55	128	90	143,5	8,2
WN0114	TNM E - 148	390	600	4500	65	65	148	107	163,5	12,7
WN0116	TNM E - 168	630	980	4000	75	75	168	124	183,5	19,3
WN0119	TNM E - 194	1050	1650	3500	85	85	194	140	203,5	27,9
WN0121	TNM E - 214	1500	2400	3000	95	95	214	157	224	38,2
WN0124	TNM E - 240	2400	3700	2750	110	110	240	179	244	53,4
WN0126	TNM E - 265	3700	5800	2500	120	120	265	198	285,5	75
WN0129	TNM E - 295	4900	7550	2250	130	130	295	214	308	95,7
WN0133	TNM E - 330	6400	9900	2000	150	150	330	248	328	132,9
WN0137	TNM E - 370	8900	14000	1750	170	170	370	278	368	187,7
WN0141	TNM E - 415	13200	20500	1500	190	190	415	315	408	259,3
WN0148	TNM E - 480	18000	28000	2100	210	210	480	315	448	328,7
WN0157	TNM E - 575	27000	41000	1800	230	230	575	350	488	467

Why Choose Ringfeder Elastomer Jaw Couplings TNM E?

The rotational resilience of the TNM E coupling transfers dangerous torsional vibrations to safe speed ranges, protecting machinery from damage.

High material damping capability of the elastic intermediate rings limits resonance enhancements, mitigates torque shocks, and prevents structure-borne noise.

Dai Hong Phat Corp specializes in supplying Ringfeder Elastomer Jaw Coupling TNM E products across Vietnam.

We ensure that our couplings are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is dedicated to providing high-quality Ringfeder TNM E couplings at competitive prices. We maintain a substantial inventory to ensure goods are available in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
