Elastomer Jaw Couplings TNB BHDDVV

SKU:WB2024-A

0₫

Size:

TNB BHDDVV - 240 A

TNB BHDDVV - 240 B

TNB BHDDVV - 300 A

TNB BHDDVV - 300 B

TNB BHDDVV - 350 A

TNB BHDDVV - 350 B

TNB BHDDVV - 400 A

TNB BHDDVV - 400 B

TNB BHDDVV - 450 A

TNB BHDDVV - 450 B

TNB BHDDVV - 500 A

TNB BHDDVV - 500 B

TNB BHDDVV - 550 A

TNB BHDDVV - 550 B

TNB BHDDVV - 600 A

TNB BHDDVV - 600 B

TNB BHDDVV - 650 A

TNB BHDDVV - 650B

TNB BHDDVV - 700 A

TNB BHDDVV - 700 B

TNB BHDDVV - 800 A

TNB BHDDVV - 800 B

TNB BHDDVV - 900 A

TNB BHDDVV - 900 B

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Product information

Key Characteristics of the Elastomer Jaw Couplings TNB BHDDVV

The Ringfeder TNB BHDDVV coupling is a torsionally flexible, puncture-proof claw coupling designed to compensate for angular, radial, and axial shaft misalignments within defined limits.

It transmits torque through elastic buffers loaded in shear, made of synthetic rubber (Pb) or polyurethane (VkR). These elastic buffers effectively dampen shocks and torsional vibrations, and they are resistant to oil. The claw ring can be easily pulled back to check the rotational direction of the drive. This coupling is suitable for use in any rotational direction and installation position.

- The coupling is available in 12 sizes, offering a range of options to suit different needs.

- It supports a maximum bore diameter for both d1 and d2, ranging from 85 to 340 mm, accommodating various shaft sizes effectively.

- The outer diameter of the coupling ranges from 240 to 900 mm, ensuring compatibility with different equipment dimensions.

- Its overall length spans from 270 to 690 mm, providing flexibility in installation setups.

- The coupling can operate at maximum rotational speeds between 1,100 and 4,100 RPM, making it suitable for various speed requirements.

- It is capable of handling torques ranging from 2,500 to 180,000 Nm, catering to a wide spectrum of load conditions.

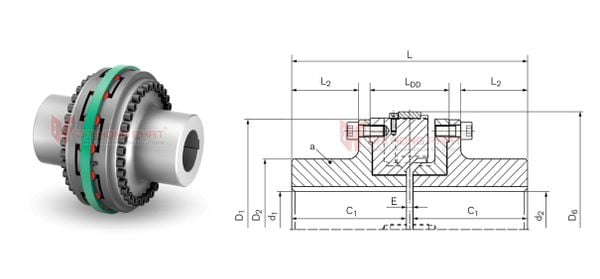

Product Specifications of TNB BHDDVV Elastomer Jaw Couplings

TNB BHDDVV Catalogue	TNB BHDDVV Installation Instruction

Identifier	Size Coupling	T_KN	n_max	Dimensions [mm]				Gw_ub
TNB BHDDVV	Size Coupling	[Nm]	[1/min]	d_{1 max}	d_{2 max}	D₁	L	[kg]
WB2024-A	TNB BHDDVV - 240	2500	4100	85	85	240	315	56
WB2024-B	TNB BHDDVV - 240	2500	4100	85	100	240	335	61
WB2030-A	TNB BHDDVV - 300	6000	3300	110	110	300	384	105
WB2030-B	TNB BHDDVV - 300	6000	3300	110	135	300	410	121
WB2035-A	TNB BHDDVV - 350	10500	2800	120	120	350	424	138
WB2035-B	TNB BHDDVV - 350	10500	2800	120	170	350	475	187
WB2040-A	TNB BHDDVV - 400	16000	2450	140	140	400	451	202
WB2040-B	TNB BHDDVV - 400	16000	2450	140	190	400	500	161
WB2045-A	TNB BHDDVV - 450	21000	2200	170	170	450	471	264
WB2045-B	TNB BHDDVV - 450	21000	2200	170	205	450	510	315
WB2050-A	TNB BHDDVV - 500	28500	2000	180	180	500	539	377
WB2050-B	TNB BHDDVV - 500	28500	2000	180	225	500	590	454
WB2055-A	TNB BHDDVV - 550	45000	1800	200	200	550	539	428
WB2055-B	TNB BHDDVV - 550	45000	1800	200	240	550	590	521
WB2060-A	TNB BHDDVV - 600	55000	1650	235	235	600	604	595
WB2060-B	TNB BHDDVV - 600	55000	1650	235	265	600	645	688
WB2065-A	TNB BHDDVV - 650	65000	1500	250	250	650	609	688
WB2065-B	TNB BHDDVV - 650	65000	1500	250	265	650	650	760
WB2070-A	TNB BHDDVV - 700	90000	1400	260	260	700	698	912
WB2070-B	TNB BHDDVV - 700	90000	1400	260	310	700	745	1076
WB2080-A	TNB BHDDVV - 800	120000	1200	320	320	800	778	1350
WB2080-B	TNB BHDDVV - 800	120000	1200	320	340	800	805	1460
WB2090-A	TNB BHDDVV - 900	180000	1100	340	340	900	784	1601
WB2090-B	TNB BHDDVV - 900	180000	1100	340	400	900	845	1948

Why Choose Ringfeder Elastomer Jaw Couplings TNB BHDDVV?

Ringfeder TNB BHDDVV couplings are used worldwide in demanding heavy industrial applications thanks to their durability and outstanding functionality – delivering maximum performance for machinery and plants.

Ringfeder TNB BHDDVV is preferred in steel mills, rolling mills and cement plants, in mining and construction machinery, such as excavators, shredders and tunnel boring machines, as well as in offshore technology.

Dai Hong Phat Corp specializes in the supply of genuine Ringfeder TNB BHDDVV Couplings throughout Vietnam.

Our products are brand new, complete with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing high-quality Ringfeder TNS S-LSt coupling at competitive prices. We maintain a substantial inventory to ensure the availability of goods in large quantities.

---------------------------------------------------------------------------------------
