Elastomer Jaw Couplings TNB BHDDV

SKU:WB2024-A

0₫

Size:

TNB BHDDV - 240 A

TNB BHDDV - 240 B

TNB BHDDV - 300 A

TNB BHDDV - 300 B

TNB BHDDV - 350 A

TNB BHDDV - 350 B

TNB BHDDV - 400 A

TNB BHDDV - 400 B

TNB BHDDV - 450 A

TNB BHDDV - 450 B

TNB BHDDV - 500 A

TNB BHDDV - 500 B

TNB BHDDV - 550 A

TNB BHDDV - 550 B

TNB BHDDV - 600 A

TNB BHDDV - 600 B

TNB BHDDV - 650 A

TNB BHDDV - 650 B

TNB BHDDV - 700 A

TNB BHDDV - 700 B

TNB BHDDV - 800 A

TNB BHDDV - 800 B

TNB BHDDV - 900 A

TNB BHDDV - 900 B

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Product information

Key Characteristics of the Elastomer Jaw Couplings TNB BHDDV

The Ringfeder Elastomer Jaw Coupling TNB BHDDV is a torsionally flexible, puncture-proof claw coupling designed to compensate for angular, radial, and axial shaft misalignments within defined limits. It also known as "khớp nối trục TNB BHDDV".

It transmits torque through elastic buffers loaded in shear, available in synthetic rubber (Pb) or polyurethane (VkR).

These buffers dampen shocks and torsional vibrations and are oil-resistant. The claw ring can be pulled back to check the rotational direction of the drive easily. This coupling is suitable for use in any rotational direction and installation position.

- The TNB BHDDV coupling comes in 24 different sizes, offering a wide range of options to fit various applications and needs.

- The coupling is torsionally flexible and can compensate for angular, radial, and axial shaft misalignment.

- It features an outer diameter of up to 900 mm.

- The buffers are loaded in compression and can be replaced radially without needing to move the coupled machines.

- Elastomers are available in various shore hardness degrees, making it suitable for temperatures ranging from –30°C to +100°C.

- It supports bores up to a maximum of 400 mm and can handle torques up to TKn = 260,000 Nm and TKmax = 780,000 Nm.

- The coupling operates at speeds up to nmax = 4,100 rpm.

Product Specifications of TNB BHDDV Elastomer Jaw Couplings

TNB BHDDV Catalogue	TNB BHDDV Installation Instruction

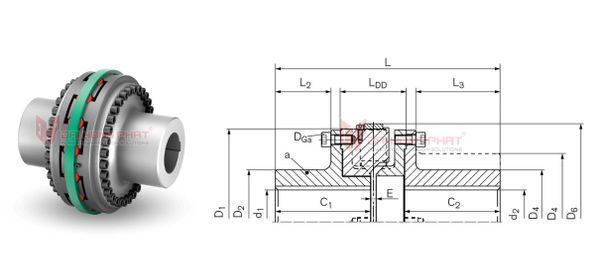

Identifier	Size Coupling	T_KN	n_max	Dimenssions [mm]				Gw_ub
TNS BHDDV	Size Coupling	Nm	1/min	d_{1 max}	d_{2 max}	D₁	L	_[kg]
WB2024-A	TNB BHDDV - 240	2500	4100	85	85	240	140	56
WB2024-B	TNB BHDDV - 240	2500	4100	85	100	240	150	61
WB2030-A	TNB BHDDV - 300	6000	3300	110	110	300	170	105
WB2030-B	TNB BHDDV - 300	6000	3300	110	135	300	200	121
WB2035-A	TNB BHDDV - 350	10500	2800	120	120	350	180	138
WB2035-B	TNB BHDDV - 350	10500	2800	120	170	350	250	187
WB2040-A	TNB BHDDV - 400	16000	2450	140	140	400	210	202
WB2040-B	TNB BHDDV - 400	16000	2450	140	190	400	280	161
WB2045-A	TNB BHDDV - 450	21000	2200	170	170	450	250	264
WB2045-B	TNB BHDDV - 450	21000	2200	170	205	450	300	315
WB2050-A	TNB BHDDV - 500	28500	2000	180	180	500	270	377
WB2050-B	TNB BHDDV - 500	28500	2000	180	225	500	330	454
WB2055-A	TNB BHDDV - 550	45000	1800	200	200	550	280	428
WB2055-B	TNB BHDDV - 550	45000	1800	200	240	550	350	521
WB2060-A	TNB BHDDV - 600	55000	1650	235	235	600	330	595
WB2060-B	TNB BHDDV - 600	55000	1650	235	265	600	385	688
WB2065-A	TNB BHDDV - 650	65000	1500	250	250	650	350	688
WB2065-B	TNB BHDDV - 650	65000	1500	250	265	650	385	760
WB2070-A	TNB BHDDV - 700	90000	1400	260	260	700	370	912
WB2070-B	TNB BHDDV - 700	90000	1400	260	310	700	450	1076
WB2080-A	TNB BHDDV - 800	120000	1200	320	320	800	450	1350
WB2080-B	TNB BHDDV - 800	120000	1200	320	340	800	490	1460
WB2090-A	TNB BHDDV - 900	180000	1100	340	340	900	480	1601
WB2090-B	TNB BHDDV - 900	180000	1100	340	400	900	590	1948

Why Choose Ringfeder Elastomer Jaw Couplings TNB BHDDV?

Ringfeder TNB Type BHDDV are designed for short shaft distances, this coupling features a combination of two two-part coupling hubs and a VkR buffer. The elastic buffer can be easily replaced without requiring axial movement of the coupled machines.

Ringfeder TNB BHDDV couplings are used worldwide in demanding heavy industrial applications thanks to their durability and superior functionality – delivering maximum performance for machinery and plants. Ringfeder TNB BHDDV is preferred in steel mills, steel and cement mills, in mining and construction machinery, such as excavators, shredders and tunnel boring machines, as well as in offshore technology.

Dai Hong Phat Corp holds the prestigious position of being the authorized representative of Ringfeder Germany in Vietnam.

This partnership underscores their commitment to providing high-quality Ringfeder products and services in the region.

With this authorization, Dai Hong Phat Corp ensures that customers in Vietnam have access to genuine Ringfeder products, backed by the technical support and expertise required for optimal application and performance.

---------------------------------------------------------------------------------------
