Elastomer Jaw Couplings TNB BHDD

SKU:WB0624-A

0₫

Size:

TNB BHDD - 240 A

TNB BHDD - 240 B

TNB BHDD - 300 A

TNB BHDD - 300 B

TNB BHDD - 350 A

TNB BHDD - 350 B

TNB BHDD - 400 A

TNB BHDD - 400 B

TNB BHDD - 450 A

TNB BHDD - 450 B

TNB BHDD - 500 A

TNB BHDD - 500 B

TNB BHDD - 550 A

TNB BHDD - 550 B

TNB BHDD - 600 A

TNB BHDD - 600 B

TNB BHDD - 650 A

TNB BHDD - 650 B

TNB BHDD - 700 A

TNB BHDD - 700 B

TNB BHDD - 800 A

TNB BHDD - 800 B

TNB BHDD - 900 A

TNB BHDD - 900 B

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Product information

Key Characteristics of the Elastomer Jaw Couplings TNB BHDD

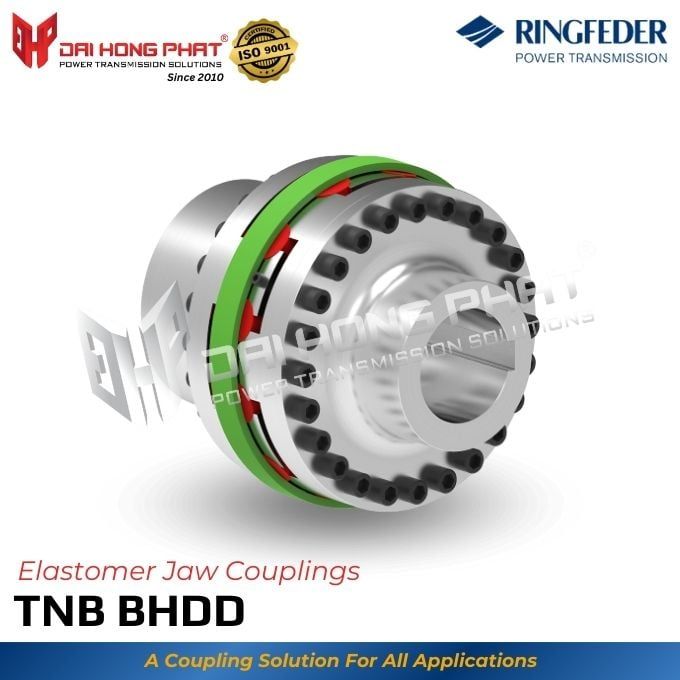

The Ringfeder TNB BHDD elastomer jaw coupling is a torsionally flexible, puncture-proof claw coupling that compensates for angular, radial, and axial shaft misalignments within defined limits. It also known as "khớp nối trục TNB BHDD".

It transmits torque through elastic buffers loaded in shear, available in synthetic rubber (Pb) or polyurethane (VkR).

These buffers dampen shocks and torsional vibrations and are oil-resistant. The intermediate part can be removed to check the rotational direction of the drive easily.

The TNB BHDD flexible coupling is suitable for use in any rotational direction and installation position.

- The coupling is torsionally flexible, which allows it to compensate for angular, radial, and axial shaft misalignments.

- The buffers are loaded in compression, enhancing durability. These buffers can be replaced radially without needing to move the coupled machines, facilitating easy maintenance.

- Elastomers are available in various shore hardness degrees, providing customization options.

- The coupling is suitable for temperatures ranging from –30°C to +100°C, making it versatile for different environments.

- It has an outer diameter of up to 900 mm and bores up to a maximum of 400 mm, accommodating a variety of shaft sizes.

- It can handle torques up to TKn = 260,000 Nm and TKmax = 780,000 Nm, making it suitable for a wide range of applications.

- Additionally, it can operate at speeds up to nmax = 4,100 rpm.

Product Specifications of TNB BHDD Elastomer Jaw Couplings

TNB BHDD Catalogue	TNB BHDD Installation Instruction

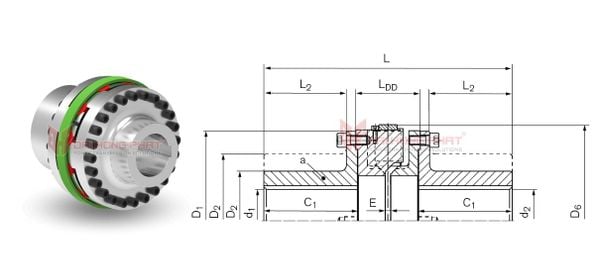

Identifier	Size Coupling	T_KN	n_max	Dimenssions [mm]				Gw_ub
TNB BHDD	Size Coupling	Nm	1/min	d_kmax	L	L₂	D₂	[kg]
WB0624-A	TNB BHDD - 240	2500	4100	85	360	113	140	58
WB0624-B	TNB BHDD - 240	2500	4100	100	400	133	150	68
WB0630-A	TNB BHDD - 300	6000	3300	110	438	139	170	109
WB0630-B	TNB BHDD - 300	6000	3300	135	490	165	200	140
WB0635-A	TNB BHDD - 350	10500	2800	120	478	159	180	139
WB0635-B	TNB BHDD - 350	10500	2800	170	580	210	250	238
WB0640-A	TNB BHDD - 400	16000	2450	140	512	167	210	203
WB0640-B	TNB BHDD - 400	16000	2450	190	610	216	280	321
WB0645-A	TNB BHDD - 450	21000	2200	170	532	177	250	266
WB0645-B	TNB BHDD - 450	21000	2200	205	610	216	300	386
WB0650-A	TNB BHDD - 500	28500	2000	180	608	199	270	380
WB0650-B	TNB BHDD - 500	28500	2000	225	710	250	330	536
WB0655-A	TNB BHDD - 550	45000	1800	200	608	199	280	427
WB0655-B	TNB BHDD - 550	45000	1800	240	710	250	350	613
WB0660-A	TNB BHDD - 600	55000	1650	235	678	229	330	595
WB0660-B	TNB BHDD - 600	55000	1650	265	760	270	385	782
WB0665-A	TNB BHDD - 650	65000	1500	250	688	225	350	688
WB0665-B	TNB BHDD - 650	65000	1500	265	770	266	385	832
WB0670-A	TNB BHDD - 700	90000	1400	260	786	263	370	914
WB0670-B	TNB BHDD - 700	90000	1400	310	880	310	450	1241
WB0680-A	TNB BHDD - 800	120000	1200	320	866	303	450	1350
WB0680-B	TNB BHDD - 800	120000	1200	340	920	330	490	1570
WB0690-A	TNB BHDD - 900	180000	1100	340	878	297	480	1601
WB0690-B	TNB BHDD - 900	180000	1100	400	1000	358	590	2295

Why Choose Ringfeder Elastomer Jaw Couplings TNB BHDD?

The Ringfeder TNB BHDD couplings feature a multi-part design with a radially removable central section and VkR buffer. The elastic buffer can be easily replaced without axial movement of the coupled machines, facilitating maintenance. The drive train assembly is simplified by the insertable central section.

Ringfeder TNB BHDD couplings are renowned globally for their durability and superior functionality, making them ideal for demanding heavy industrial applications. These couplings deliver maximum performance for machinery and plants, and are particularly favored in steel mills, cement mills, mining, and construction machinery such as excavators, shredders, and tunnel boring machines. They are also widely used in offshore technology.

Dai Hong Phat Corp proudly serves as the authorized representative of Ringfeder Germany in Vietnam.

This esteemed partnership highlights their dedication to offering high-quality Ringfeder products and services throughout the region.

Through this authorization, Dai Hong Phat Corp guarantees that customers in Vietnam receive genuine Ringfeder products, supported by expert technical assistance and tailored for optimal application and performance.

---------------------------------------------------------------------------------------
