Elastomer Jaw Coup­lings TNB BHD

Key Characteristics of the Elastomer Jaw Couplings TNB BHD

The Ringfeder TNB BHD elastomer jaw coupling is a torsionally flexible, puncture-proof claw coupling designed to compensate for angular, radial, and axial shaft misalignments within defined limits. It also as known "khớp nối trục TNB BHD".

It transmits torque through compression-loaded elastic buffers, available in synthetic rubber (PB) or standard polyurethane (VkR).

These buffers dampen shocks and torsional vibrations and are oil-resistant. Perbunan buffers are electrically conductive. One half of the coupling features a flange hub with a bolted claw ring. Removing the claw ring allows for easy checking of the drive's rotational direction.

The coupling is suitable for use in any rotational direction and installation position.

- The TNB BHD coupling is available in 22 sizes, offering flexibility for different applications.

- It supports a maximum bore diameter for d1 ranging from 135 to 360 mm, and for d2 from 110 to 400 mm, accommodating various shaft sizes.

- The outer diameter of the coupling ranges from 300 to 900 mm, ensuring compatibility with different equipment dimensions.

- Its overall length spans from 384 to 914 mm, providing versatility in installation setups.

- The coupling can operate at maximum rotational speeds between 1,100 and 3,300 RPM, making it suitable for various speed requirements.

- It is capable of handling torques ranging from 6,000 to 180,000 Nm, catering to a wide spectrum of load conditions.

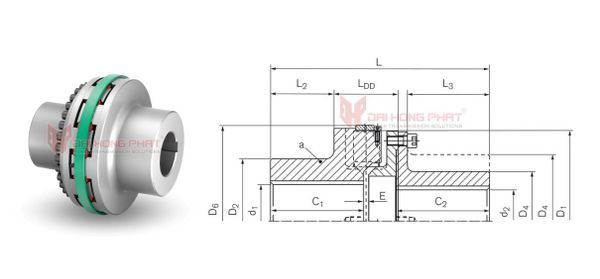

Product Specifications of TNB BHD Elastomer Jaw Couplings

TNB BHD Catalogue	TNB BHD Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings TNB BHD?

Ringfeder TNB BHD couplings are internationally acclaimed for their durability and exceptional functionality, making them perfect for heavy industrial applications. They provide optimal performance for machinery and plants, and are especially preferred in steel mills, cement mills, as well as mining and construction machinery such as excavators, shredders, and tunnel boring machines. These couplings are also extensively utilized in offshore technology.

Dai Hong Phat Corp is honored to be the authorized representative of Ringfeder Germany in Vietnam.

This partnership reflects their dedication to offering high-quality Ringfeder products and services in the region.

With this authorization, Dai Hong Phat Corp guarantees that customers in Vietnam will have access to genuine Ringfeder products, supported by expert technical assistance for optimal application and performance.

---------------------------------------------------------------------------------------
