Elastomer Jaw Couplings TNB BH

SKU:WB0130

0₫

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Key Characteristics of the Elastomer Jaw Couplings TNB BH

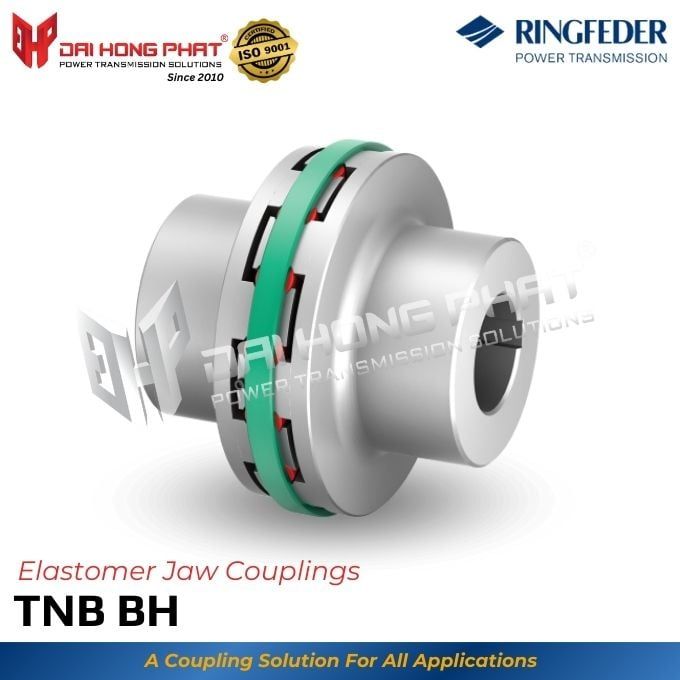

The Ringfeder TNB BH elastomer jaw coupling is a torsionally flexible, puncture-proof claw coupling designed to compensate for angular, radial, and axial shaft misalignments within specified limits. It also as known "khớp nối trục TNB BH".

It transmits torque through compression-loaded elastic buffers, available in synthetic rubber (Pb) or standard polyurethane (VkW). These buffers effectively dampen shocks and torsional vibrations and are resistant to oil.

The coupling is suitable for use in all directions of rotation and installation positions.

- The TNB BH coupling is available in 11 sizes, providing a range of options to suit different applications.

- It supports a maximum bore diameter for both d1 and d2, ranging from 135 to 360 mm, accommodating various shaft sizes.

- The outer diameter of the coupling ranges from 300 to 900 mm, ensuring compatibility with different equipment dimensions.

- Its overall length spans from 330 to 828 mm, offering flexibility in installation setups.

- The coupling can operate at maximum rotational speeds between 1,100 and 3,300 RPM, making it suitable for various speed requirements.

- It can handle torques ranging from 8,600 to 260,000 Nm, catering to a wide spectrum of load conditions.

Product Specifications of TNB BH Elastomer Jaw Couplings

TNB BH Catalogue	TNB BH Installation Instruction

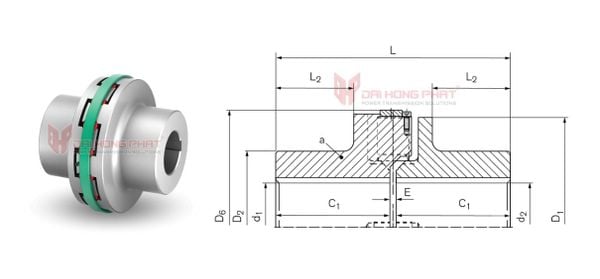

Identifier	Size Coupling	T_KN	n_max	Dimensions [mm]					Gw_ub
TNB BH	Size Coupling	Nm	1/min	d_{1 max}	d_{2 max}	D₁	D₂	L	[kg]
WB0130	TNB BH - 300	8600	3300	135	135	300	210	330	101
WB0135	TNB BH - 350	15000	2800	160	160	350	240	370	145
WB0140	TNB BH - 400	23000	2450	180	180	400	270	406	210
WB0145	TNB BH - 450	31000	2200	200	200	450	300	446	275
WB0150	TNB BH - 500	41200	2000	220	220	500	330	487	371
WB0155	TNB BH - 550	66000	1800	240	240	550	350	527	456
WB0160	TNB BH - 600	80000	1650	250	250	600	375	530	565
WB0165	TNB BH - 650	94000	1500	260	260	650	400	587	705
WB0170	TNB BH - 700	130000	1400	300	300	700	450	668	985
WB0180	TNB BH - 800	180000	1200	330	330	800	490	728	1285
WB0190	TNB BH - 900	260000	1100	360	360	900	540	828	1790

Why Choose Ringfeder Elastomer Jaw Couplings TNB BH?

The TNB BH features a one-part design with a VkW buffer, ensuring the highest torque transmission. The elastic buffer can be easily replaced without necessitating any axial movement of the coupled machines.

Ringfeder TNB BH couplings are known for their durability and exceptional functionality, making them ideal for heavy industrial applications. They excel in steel mills, cement mills, mining and construction machinery, such as excavators, shredders, and tunnel boring machines, and are also widely used in offshore technology.

Dai Hong Phat Corp holds the prestigious role of being the authorized representative of Ringfeder Germany in Vietnam.

This collaboration highlights their commitment to providing superior Ringfeder products and services in the region.

By securing this authorization, Dai Hong Phat Corp ensures that Vietnamese customers receive genuine Ringfeder products, bolstered by the necessary technical support and expertise for optimal application and performance.

---------------------------------------------------------------------------------------
