Elastomer Jaw Couplings GWE 5106

Main Characteristics of The Elastomer Jaw Coup­lings GWE 5106

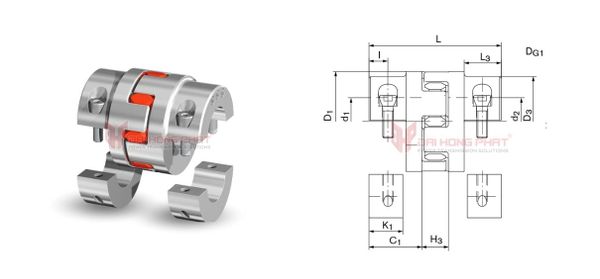

The Ringfeder GWE 5106 combined with the benefits of the GWE 5104 Servo-Insert Coupling with added ease of installation. Its clamping hubs, designed in a split hub style, can be mounted laterally on aligned shaft extensions. The shaft tolerance should fall within the fit tolerance range of 'g6' to 'h7'. It also known as "khớp nối servo GWE 5106".

- Low mass achieved through aluminum hubs.

- Optimized vibration damping provided by various elastomer spider hardness levels.

- Standard red elastomer spider included: 98 Shore A up to size 55 and 95 Shore A from size 65.

- Simple radial installation and removal without the need to shift shafts.

- Puncture-proof and electrically insulating properties.

- Optional keyways in coupling hubs, in accordance with DIN 6885-1.

Specification of GWE 5106:

- It has 10 Sizes

- Bore Diameter d: 5-95 mm

- Outer Diameter D: 30-160 mm

- Overall Length L: 35-210 mm

- Rot. Speed nmax: 2,350-13,000 1/min

- Torque T: 3.7-1,920 Nm

GWE 5106 servo coupling product specifications

GWE 5106 Catalogue	GWE 5106 Installation Instruction

Why Choose Ringfeder Elastomer Jaw Coup­lings GWE 5106?

Each hub on the GWE 5106 elastomer jaw coupling features concave jaws on its face. By joining two hubs and filling the created free space with an elastic sprocket, the coupling transmits torque, dampens impact, and balances out misalignments.

The GWE jaw couplings are backlash-free due to the pressure pre-tensioning of the elastomer buffers, ensuring high positioning precision in reverse operation. Various Shore hardness levels allow optimization of the entire drive line from the perspective of rotary oscillation, with detailed technical data available for the sprockets.

Dai Hong Phat Corp is a leading specialist in supplying Ringfeder Servo Coupling GWE 5106 products throughout Vietnam.

We guarantee that the couplings we offer are 100% genuine, brand new, and come with certificates and clear origins.

With 15 years of industry experience, Dai Hong Phat Corp is committed to providing authentic, high-quality Ringfeder GWE 5106 servo couplings at competitive prices. Additionally, we maintain a substantial inventory to ensure that goods are readily available in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
