Elastomer Jaw Couplings GWE Z5106.1

0₫

GWE Z5106.1 - 14

GWE Z5106.1 - 19

GWE Z5106.1 - 24

GWE Z5106.1 - 28

GWE Z5106.1 - 38

GWE Z5106.1 - 42

GWE Z5106.1 - 48

100% genuine product

Dedicated 24/7 shopping advice. Hotline: +84906 955 057

Free shipping for orders over 499,000 VND

Main Characteristics of The Elastomer Jaw Couplings GWE Z5106.1

Elastomer Jaw Couplings GWE Z5106.1 feature a self-aligning design with clamping hubs in a split hub configuration, ideal for large shaft spacings. Similar to the GWE Z5104.1, the Ringfeder GWE Z5106.1 coupling is used to bridge significant shaft separations. The half-shell clamping hubs enhance the benefits by allowing single radial assembly on pre-aligned shafts.

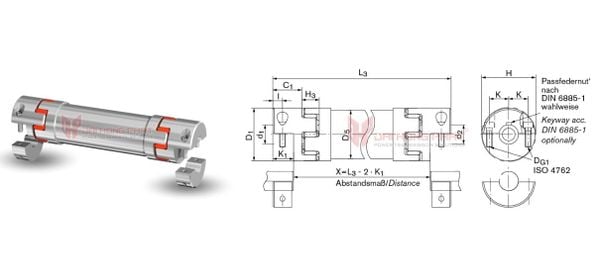

This coupling consists of two Ringfeder GWE 5106 units connected by an aluminum precision intermediate pipe. The shaft tolerance should fall within the fit tolerance range of ‘g6’ to ‘h7’.

- 7 Sizes: Offers a wide range of options to suit various applications, ensuring flexibility and adaptability.

- Bore Diameter (d): 5-60 mm, this range accommodates a variety of shaft sizes, enhancing versatility for different mechanical systems.

- Outer Diameter (D): 30-105 mm, suitable for a broad range of hub sizes, ensuring compatibility with different applications.

- Coupling Length (L1): 35-140 mm, provides various length options to meet specific requirements, contributing to secure and stable connections.

- Line Shaft Length (L3): 85-3,000 mm, capable of bridging large shaft separations, making it ideal for applications requiring significant distances between shafts.

- Torque (T): 3.7-525 Nm, capable of handling torque values from low to moderately high, making it suitable for various industrial applications requiring precise force transmission.

GWE Z5106.1 product specifications

GWE Z5106.1 Catalogue	GWE Z5106.1 Installation Instruction

Coupling Model	Dimensions [mm]					T
Coupling Model	d1	d2	D1	D5	L3 min-max	[Nm]
GWE 5106.1-14	5	16	30	30	85 - 3000	12,5
GWE 5106.1-19	6	20	40	40	146 - 3000	17
GWE 5106.1-24	10	32	55	50	180 - 3000	60
GWE 5106.1-28	10	38	65	60	216 - 3000	160
GWE 5106.1-38	12	48	80	80	266 - 3000	325
GWE 5106.1-42	14	54	95	90	280 - 3000	450
GWE 5106.1-48	15	60	105	108	296 - 3000	525

Why Choose Ringfeder Elastomer Jaw Couplings GWE Z5106.1?

GWE Z5106.1 Couplings are utilized in engineering applications where high positioning precision and vibration damping are crucial in accelerated processes. They are preferred for their plug-in coupling solutions.

The GWE Z5106.1 offers advantages such as being backlash-free due to pre-stressing, featuring a pluggable design, providing effective vibration damping, handling torque ranges from 0.5 to 650 Nm, compensating for radial, axial, and angular misalignment, and being electrically isolating.

It is applied in encoders, precision drives, feed drives, grinding and milling spindles, machine tools, packing machines, robotics, transfer lines, multi-spindle heads, wood processing equipment, textile machinery, and conveying equipment.

Dai Hong Phat Corp is a leading specialist in providing all Ringfeder Servo Coupling GWE Z5106.1 products across Vietnam.

Dai Hong Phat Corp commits that the couplings that customers are interested in are 100% genuine, new quality, have certificates and clear origin.

With 15 years in the industry, Dai Hong Phat commits to providing genuine, high-quality Ringfeder GWE Z5106.1 servo couplings at the most competitive prices. In addition, the goods are available in stock, in large quantities.

---------------------------------------------------------------------------------------

Contact Dai Hong Phat Corp today to learn more!!
