Couplings and Coupling Systems: Requirements, Selection and Design

In mechanical drive systems, couplings are essential for transmitting torque while compensating for misalignments and reducing vibrations. Among them, torsional flexible couplings stand out for their ability to enhance system performance by minimizing wear, preventing resonance, and ensuring smooth power transmission. Choosing the right coupling requires careful consideration of factors such as torque capacity, stiffness, damping, and environmental conditions. This article explores the key aspects of torsional flexible couplings and where to find high-quality Ringfeder couplings in Vietnam.

1. Introduction to Coupling Systems

Couplings are essential components in mechanical drive systems, facilitating torque transmission while accommodating misalignments and dampening vibrations. To ensure efficient and reliable operation, a coupling must meet several critical requirements. These include the ability to endure mechanical stresses, demand minimal maintenance, and operate smoothly throughout its lifespan. The correct selection and design of a coupling play a vital role in optimizing system performance and longevity.

A well-designed coupling enhances the overall efficiency of a drive system, reducing wear and tear on machinery and ensuring smooth power transmission. Choosing the right coupling involves understanding its functional characteristics and ensuring compatibility with the system’s operational demands.

2. Torsional Flexible Couplings

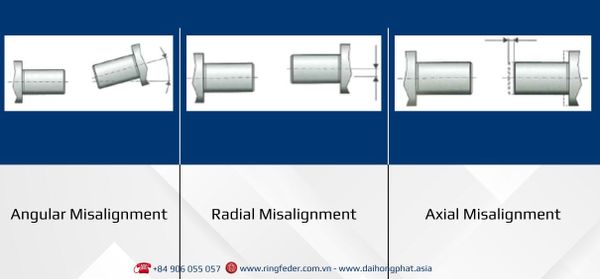

Torsionally flexible couplings serve primarily as torque transmitters while also compensating for shaft misalignments, which may become apparent during on-site operation. These couplings address different types of misalignments:
- Angular Misalignment: This occurs when the axes of the connected shafts are inclined to each other.
- Radial Misalignment: This takes place when the axes of the shafts are parallel but not collinear.
- Axial Misalignment: Results from relative movement along the axis of rotation.

Additionally, torsionally flexible couplings can help shift the natural frequencies of the drive system to a non-critical range, thereby reducing torsional vibration amplitudes and shock torques. Key design parameters include stiffness and damping characteristics, both of which are crucial for ensuring long-lasting and trouble-free operation.

By carefully selecting elastomeric coupling elements, engineers can fine-tune the dynamic behavior of the drive system, preventing issues like resonance and excessive vibration. This makes these couplings especially useful in applications where smooth torque transmission and vibration attenuation are critical.

3. What are the criteria for selecting Torsional Flexible Couplings?

When criteria for selecting torsional flexible coupling, the following factors should be considered:

- Torque calculations: The coupling must withstand the maximum torque that occurs during operation, including transient loads such as starting, stopping, and braking.

- Stiffness and elasticity: The torsional stiffness of a coupling depends on the elasticity of the material and the geometric design of the coupling. Elastic buffers play a major role in determining the flexibility of the coupling.

- Vibration damping: If a system is subjected to resonance due to periodic excitation, the amplitude of vibration can increase significantly, potentially leading to catastrophic failure. Appropriate damping, often determined by the elastic material, helps control the vibration level and ensure system stability.

- Temperature considerations: High ambient temperatures affect the mechanical stability of elastomeric components, requiring the use of high-performance materials.

- Moisture and corrosion resistance: Elastomeric seals may degrade more rapidly in humid or tropical climates. For applications in industries such as sugar mills, corrosion-resistant materials or protective coatings (e.g., nickel plating) should be considered.

- Standard versus special applications: While standard couplings meet the needs of most applications, specialized cases—such as those requiring high positioning accuracy—may require custom calculations and material selection to balance stiffness and damping properties effectively.
