Gear Coup­lings TNZ ZCAUU / ZCBUU

Key Characteristics of the Gear Coup­lings TNZ ZCAUU / ZCBUU

Unlike the TNZ ZCA model, the Ringfeder TNZ ZCAUU features two elongated hubs whose length can be adapted to meet plant requirements. In contrast, the TNZ ZCBUU coupling model is equipped with an O-ring carrier that simplifies installation by altering the mounting sequence.

To mount the coupling, unscrew the cover, place it on the shaft, mount the hub onto the shaft, slide the sleeve onto the hub, and fasten the O-ring carrier to the sleeve. This method is particularly advantageous for large couplings. Like the ZCAUU model, the ZCBUU also has two elongated hubs whose length can be adapted to plant requirements.

- The TNZ ZCAUU / ZCBUU coupling can operate effectively in temperatures up to +120 °C if special seals are used.

- It is available with both split sleeve (ZCA / ZCB) and single-piece sleeve (ZCH) options. The elastic O-ring can be replaced without moving the coupled machines.

- The coupling supports bores up to 270 mm, making it suitable for various shaft sizes.

- The coupling can handle high torque values, up to TKn = 195,000 Nm and TKmax = 390,000 Nm, ensuring it can be used in demanding applications.

- The coupling supports speeds up to 6,000 RPM, providing high-performance capabilities for various applications.

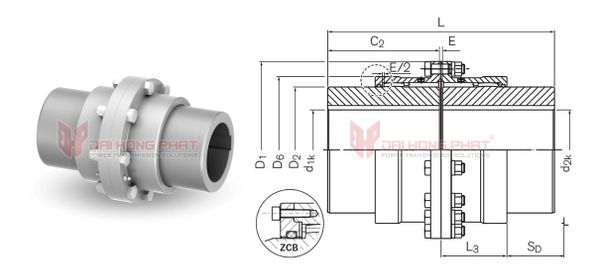

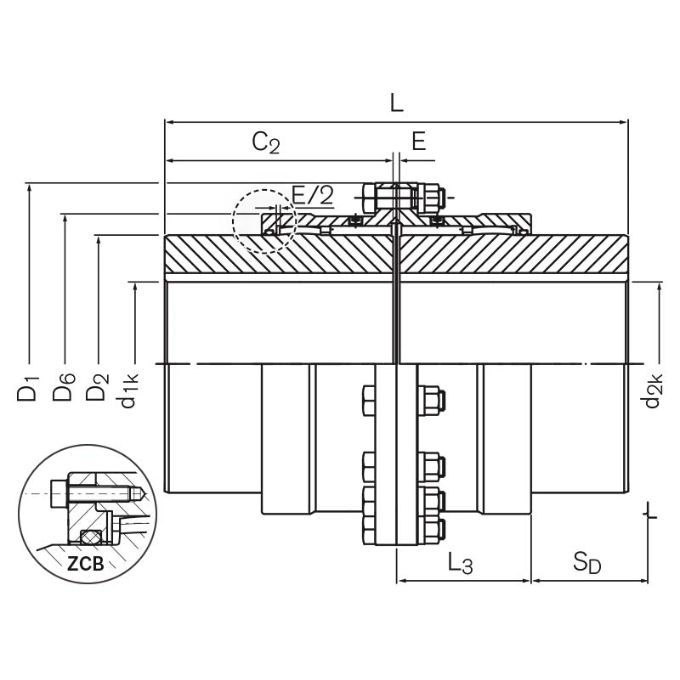

Product Specifications of Gear Coup­lings TNZ ZCAUU / ZCBUU

TNZ ZCAUU / ZCBUU Catalogue	TNZ ZCAUU / ZCBUU Installation Instruction

Identifier		Size Coupling	Torque [Nm]		nmax	Dimensions [mm]				Gw
ZCAUU	ZCBUU		TKN	TKmax	1/min	d1k min-max	D1	D2	L	[kg]
XC2306	-----	69	1750	3500	6000	12 - 50	111	69	213	7.5
XC2308	-----	85	2750	5500	4600	18 - 60	152	85	233	14
XC2310	XC3310	107	5500	11000	4200	28 - 75	178	107	263	23.1
XC2313	XC3313	133	8500	17000	4000	40 - 95	213	133	305	39.8
XC2315	XC3315	152	13500	27000	3850	50 - 110	240	152	345	57.1
XC2317	XC3317	179	22000	44000	3700	60 - 130	280	179	376	86
XC2320	XC3320	209	35000	70000	3200	70 - 155	318	209	436	133.1
XC2323	XC3323	234	43000	86000	2900	85 - 170	346	234	498	179.1
XC2325	XC3325	254	68000	136000	2600	95 - 190	389	254	598	263.7
XC2327	XC3327	279	82000	164000	2300	110 - 210	425	279	608	318.1
XC2330	XC3330	305	150000	300000	2100	120 - 230	457	305	618	374.4
XC2335	XC3335	355	195000	390000	1800	130 - 270	527	355	630	531.4

Why Choose Ringfeder Gear Coup­lings TNZ ZCAUU / ZCBUU?

Gear Couplings TNZ ZCAUU / ZCBUU are torsionally rigid gear couplings made of high-quality steel, ensuring durability and reliability. Their very compact design results in high-power density, making them efficient for various applications. Additionally, they compensate for angular, radial, and axial shaft offset, providing flexibility in alignment.

Ringfeder gear couplings TNZ ZCAUU / ZCBUU are extensively used globally in heavy industry for transmitting extremely high torques between shafts. These couplings excel in heavy-duty applications, such as direct drive systems for conveyors, mixers, mills, and roller tables.
