The Role of Elastomer Jaw Couplings in Modern Machinery

1. What Are Elastomer Jaw Couplings?

Elastomer Jaw Couplings are a type of flexible coupling that connects two shafts while compensating for misalignments. Their main components include two metal hubs and a central elastomeric element (commonly called a "spider") placed between them. The spider’s elasticity allows for torque transmission while reducing the impact of vibration and mechanical shocks.
This structure not only ensures a reliable connection between shafts but also protects connected equipment from wear and failure caused by misalignment and vibrations.
One of the primary advantages of Elastomer Jaw Couplings is vibration damping. When machines operate at high speeds or under heavy loads, vibration can compromise both performance and lifespan. By absorbing and minimizing these vibrations, elastomer couplings reduce noise, increase comfort, and prevent premature wear of mechanical parts.

2. GWE 5113: High-Precision Elastomer Coupling by Ringfeder

The Ringfeder GWE 5113 is a torsionally flexible, backlash-free elastomer coupling, designed with single-slit aluminum clamping hubs. Its compact construction ensures excellent concentricity, enabling smooth, vibration- and shock-damped torque transmission. This coupling is ideal for precision-driven applications requiring reliability and long-term durability across demanding operating conditions.

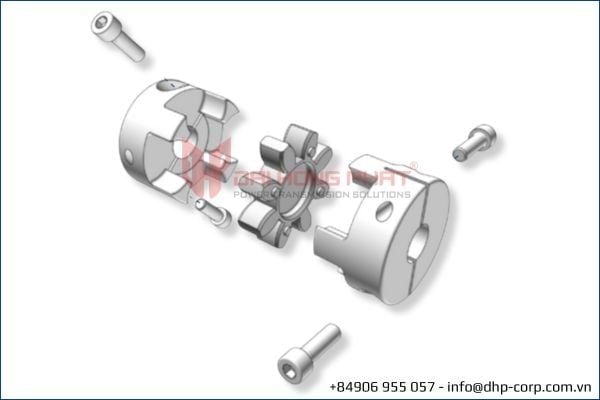

Structure of GWE 5113

3.1. Key GWE 5113 Specifications: Vibration Damping

- Bore Diameter (d): 4–56 mm
Offers wide shaft compatibility, enhancing adaptability across various mechanical systems.
- Outer Diameter (D): 24.5–94.5 mm
Supports a range of hub sizes, ensuring seamless integration into diverse setups.
- Overall Length (L): 32–102 mm
Available in multiple lengths to suit specific installation needs and maintain a secure, stable connection.
- Maximum Rotational Speed (nmax): 4,000–15,000 rpm
Suitable for high-speed operations, ideal for dynamic and fast-moving equipment.
- Nominal Torque (T): 3–560 Nm
Accommodates a wide torque range, making it suitable for applications requiring precise and consistent power transmission.

>>> See more here about GWE 5113

3.2. Advantages of Using Elastomer Jaw Couplings

- Vibration damping: Extends the life of connected components
- Torsional flexibility: Compensates for shaft misalignments
- Maintenance-free: No need for lubrication
- Compact design: Ideal for space-constrained machinery
- Fail-safe performance: Ensures torque transmission even in case of elastomer failure
- Customizable stiffness: Different elastomer hardness levels available for varied applications, such as 98ShA, 64ShA and more.

4. Flexible Couplings for a Wide Range of Applications

Flexible couplings, including elastomer jaw types, play a pivotal role in many industrial systems. They can accommodate angular, axial, and radial misalignments between connected shafts. This adaptability protects machinery from misalignment-induced damage and allows for easier installation and maintenance.
GWE 5113 - Elastomer jaw couplings are particularly advantageous in systems where ease of assembly and minimal backlash are desired. Their ability to operate without lubrication further reduces maintenance needs and makes them suitable for clean or sterile environments such as food production or pharmaceutical facilities.
Industries such as packaging, food processing, and robotics benefit significantly from this feature, where precision and minimal vibration are crucial for consistent output.

>>> See more “Elastomer Jaw Couplings: Applications in Many Industries”

5. Why Choose Dai Hong Phat for Elastomer Couplings?

With over 15 years of experience in mechanical transmission solutions, Dai Hong Phat is a trusted name in Vietnam and Southeast Asia. As an Authorized Distributor of Ringfeder Germany, the company guarantees original and certified European-standard elastomer jaw couplings, including models like GWE 5113.

Benefits of Partnering with Dai Hong Phat:

- Direct import of Ringfeder products from Germany
- Full CO/CQ documentation provided for all items
- 24/7 product availability with fast delivery
- Dedicated technical support team offering tailored consultation
- Free product specification conversion upon request
- Technical drawings available for design and installation purposes
- Professional processing workshop to refine products to match operational needs

Whether you’re upgrading a single machine or equipping a full production line, Dai Hong Phat ensures that you get the best coupling solution with expert support.

---------------------------------------
