Heavy-Duty Coupling: The Ultimate Solution for Industrial Applications

Enhance performance and reduce costs with advanced heavy-duty couplings. Move beyond traditional designs to achieve higher torque transmission, easier maintenance, and extended equipment lifespan. Discover the benefits of keyless and shrink fit couplings, and ensure optimal gearbox protection with selectively compliant solutions. Trust Dai Hong Phat Corp for premium-quality industrial couplings and expert support.

1. Move Beyond Traditional Coupling Designs to Enhance Performance and Reduce Costs

Heavy-duty shaft couplings play a crucial role in industrial applications, but conventional designs often rely on outdated principles that can limit efficiency and increase costs. Traditional couplings, such as keyed shaft connections, may not be the best choice for modern high-torque transmission needs. Advanced heavy-duty couplings offer superior alternatives, improving system performance, extending equipment lifespan, and optimizing maintenance costs.

2. Keyed vs. Keyless Shaft Couplings: Which Is Better for Torque Transmission?

Many industries assume that keyed shaft couplings provide the best torque transmission. However, advancements in keyless shaft coupling technology, such as shrink disc couplings and mechanical locking assemblies, prove otherwise.

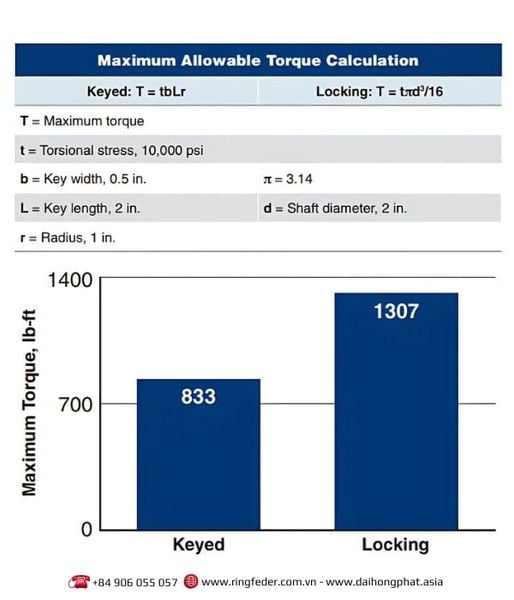

A perfect example is the Ringfeder Locking Assembly, which employs screw-tightened thrust rings to clamp the coupling to the shaft securely. Compared to a traditional keyed shaft, a keyless system can transmit higher torque efficiently without requiring an upsized shaft. This makes keyless couplings a superior choice for industrial power transmission systems.

3. Mechanical Shrink Fit Couplings: The Future of Heavy-Duty Applications

In heavy-duty industrial applications, shaft couplings can weigh hundreds or thousands of pounds, making alignment and installation a significant challenge. These couplings also need to handle high torque transmission requirements, rendering keyed connections impractical.

Mechanical shrink fit couplings utilizing Shrink Disc technology offer a superior solution. Shrink Discs employ tapered thrust rings, an inner pressure ring, and locking screws to create a secure connection between the hub and shaft. Tightening the locking screws compresses the inner ring against the hub and the hub against the shaft, resulting in a shrink fit capable of withstanding extreme forces.

Shrink Disc couplings offer several advantages over keyway-based couplings:

- Eases Installation: Aligning and engaging keyways with massive couplings is a difficult task. Shrink Discs simplify the installation process. For example, each one of the couplings weighs more than 1,720 pounds, the mine engineers wanted to avoid the challenges associated with aligning and engaging keyways on components of this scale.

- Facilitates Disassembly: Maintenance is streamlined as loosening the locking screws releases pressure on the flange hub, returning the connection to its original clearance fit dimensions and allowing for easy shaft removal. Unlike traditional machined shrink fits, which require hours of heating and can potentially damage parts, Shrink Discs offer a convenient release mechanism.

- Contamination Resistance: When the locking screws are engaged, the Shrink Discs™ effectively seal out dust and debris, making them ideal for contamination-prone environments such as mining operations.

- Prevents Misalignment: The even distribution of compression forces around the shaft circumference inherently prevents misalignment, ensuring optimal performance and longevity.

- Flanged shaft couplings with shrink disc technology are used in gearboxes, process equipment, material handling systems, and aggregate production, highlighting their versatility and reliability.

4. Selectively Compliant Couplings: Protecting Gearboxes and Extending Lifespan

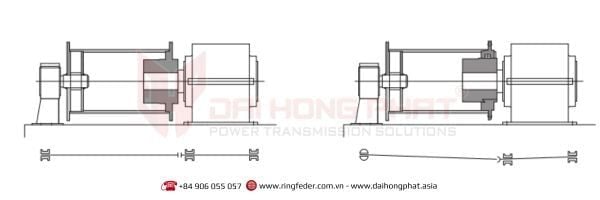

Gearboxes are critical yet expensive components in industrial machinery. A common issue arises when rigid couplings are used, subjecting gearbox shafts to alternating bending moments and excessive wear.

TNK barrel couplings, a leading selectively compliant coupling, provide a solution. These couplings feature:

- Angular and axial misalignment compensation to reduce gearbox stress.

- Torsional rigidity while allowing slight movement to absorb misalignment forces.

- Durable barrel-shaped inserts that transmit torque efficiently without excessive wear.

By reducing stress on gearbox output shafts, these high-performance industrial couplings improve durability and lower maintenance costs.

5. Dai Hong Phat Corp: Your Trusted Heavy-Duty Coupling Supplier

To achieve optimal power transmission, selecting a reliable heavy-duty coupling supplier is crucial. Dai Hong Phat Corp is a leading distributor of industrial couplings in Vietnam, offering:

- Premium-Quality Products: We source couplings from trusted global brands, ensuring durability and efficiency.

- Expert Technical Support: Our specialists help you choose the best coupling for your application.

- Outstanding Customer Service: We provide fast, reliable after-sales support to keep your operations running smoothly.

---------------------------------------------------------------------------------------
